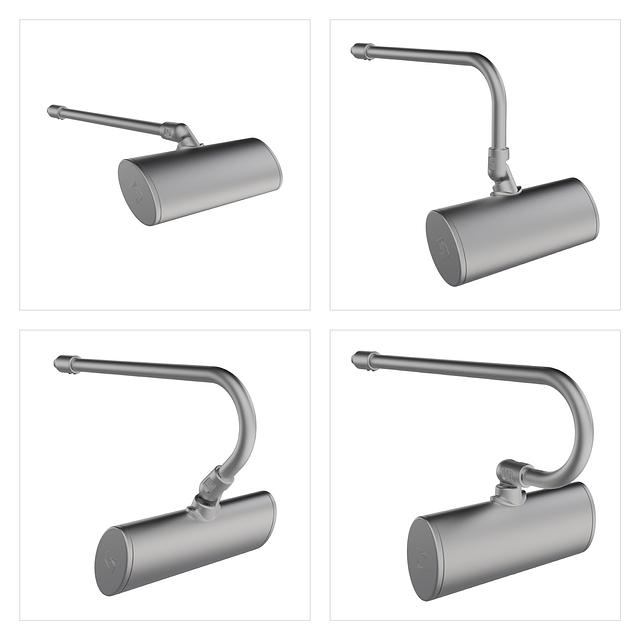

1051KM + EAM-S
Linear LED Sign Light on an Extended Arm Mount

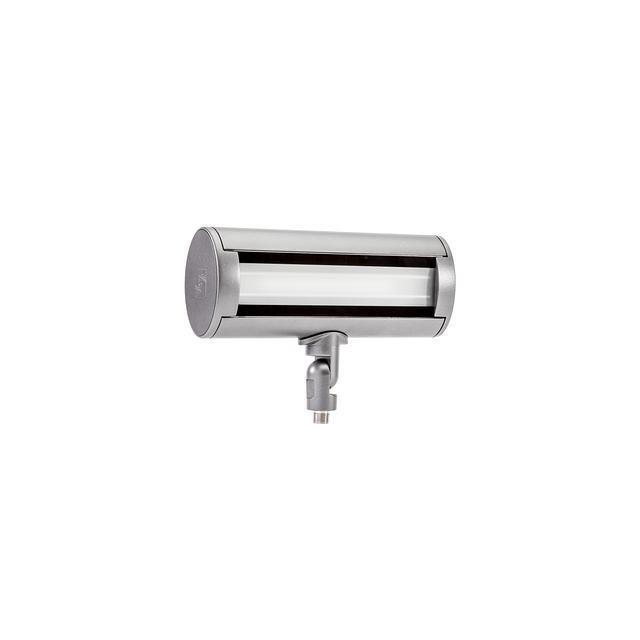

The 1051KM + EAM-S is a 13-inch Linear LED Sign Light fixture mounted on an Extended Arm Mount, making it suitable for a variety of lighting applications. This fixture integrates seamlessly with Vista's patented Infinity Knuckle, ensuring precise aiming and robust attachment to 4-0 boxes, conduit, and other electrical connections. Crafted for durability and versatility, the 1051KM produces up to 2,103 lumens per foot in six unique distributions​. It supports both 0-10V and Phase Cut dimming options, with color temperatures ranging from 2700°K to 5000°K. A durable polyester powder coat finish is applied, available in 18 standard colors.
Resources
1051
Shape
- Linear
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 875
- 1054
- 1132
- 1201
- 1286
- 1314
- 1332
- 1604
- 1686
- 1866
- 2029
- 2103
Materials
- Aluminum

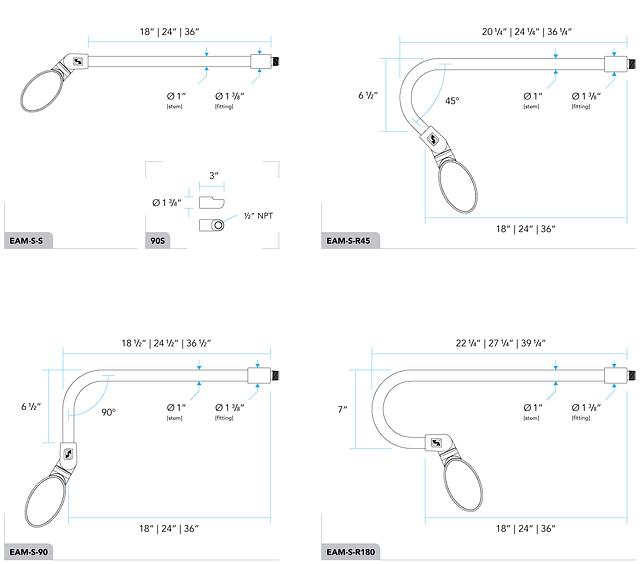

Mounting
- EAM
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP66
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 13.4
- 13.5
- 19
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase-Cut
- Tri-Dimming
- Triac (Leading Edge)
