1050KM + EAM-S
1050KM-Sign.jpg1050KM + EAM-S

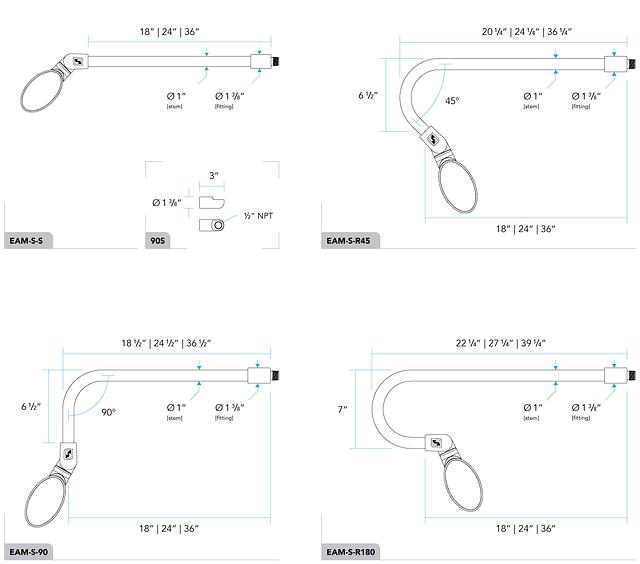

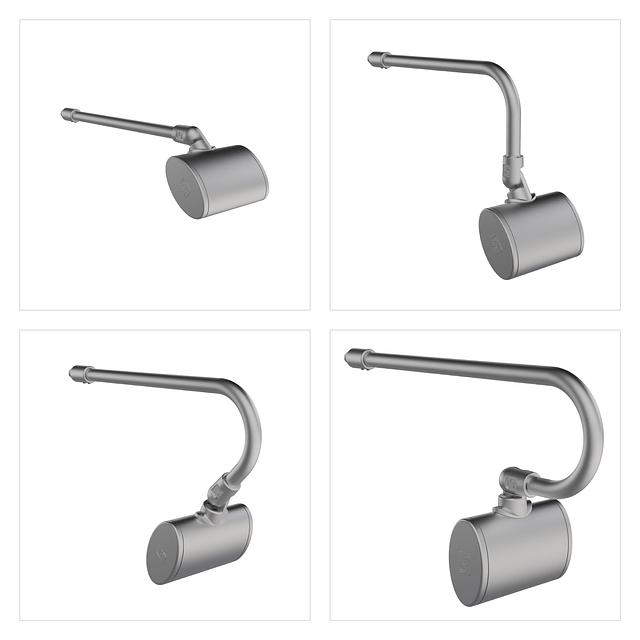

Linear LED Sign Light on an Extended Arm Mount

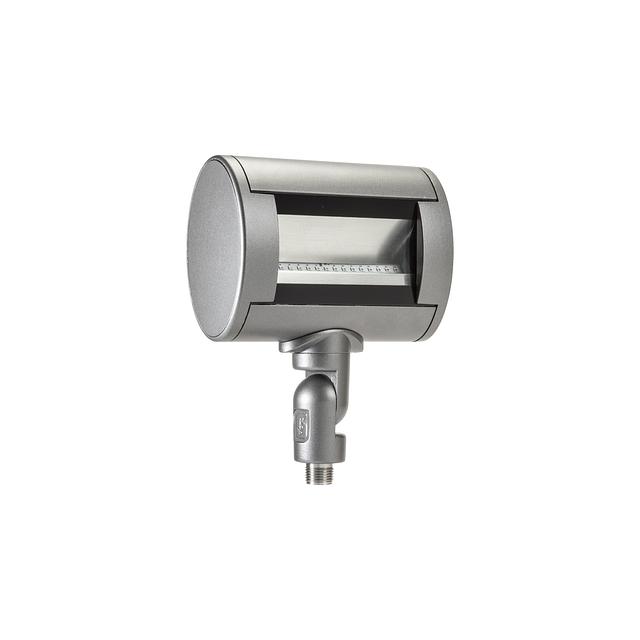

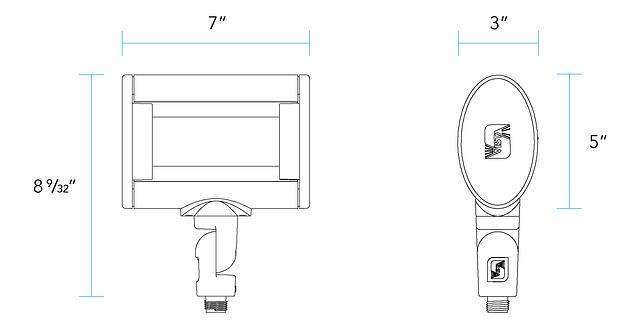

The 1050KM + EAM-S is a 7-inch Linear LED Sign Light fixture mounted on an Extended Arm Mount, making it suitable for a variety of lighting applications. Crafted for durability and versatility, the 1050KM produces up to 1,000 lumens and is available in six unique distributions. It supports both 0-10V and Phase Cut dimming options, with color temperatures ranging from 2700°K to 5000°K. A durable polyester powder coat finish is applied, available in 18 standard colors.
Resources
1050
Shape
- Linear
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 347
- 386
- 397
- 439
- 442
- 464
- 741
- 823
- 847
- 937
- 943
- 990
Materials
- Aluminum
Mounting
- EAM
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP66
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 5
- 10
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase-Cut
- Tri-Dimming
- Triac (Leading Edge)
