Lighting That Complements, Not Competes
Sign Lighting
Why choose Vista sign lighting?
Engineered for performance and precision, Vista Pro floodlights make sign illumination simple and efficient. By reducing the number of fixtures required, they enable cleaner installations while maintaining spec-grade durability. Every detail is thoughtfully designed to deliver balanced, code-compliant illumination exactly where it’s needed most.
Linear Floodlight Sign Lighting
Vista Pro Linear Floodlights deliver design flexibility and high performance for sign illumination. Multiple lengths, including a compact option for tighter sites, allow designers to achieve uniform coverage, precise punch, or grazing effects. Static white options with 80+ CRI and 18 standard finishes, plus custom colors, ensure seamless integration with any brand or site. Built from die-cast and extruded aluminum with sealed optics and tempered glass, these floodlights are durable for demanding exterior conditions, featuring IP66 ratings (IP68 for Linear Ingrade) and a corrosion-resistant powder-coat finish.
Punch & Projection
Use Narrow Spot or Asymmetric optics when setback is limited or sign height is larger. Asymmetric optics help push light up the face without creating hot spots.

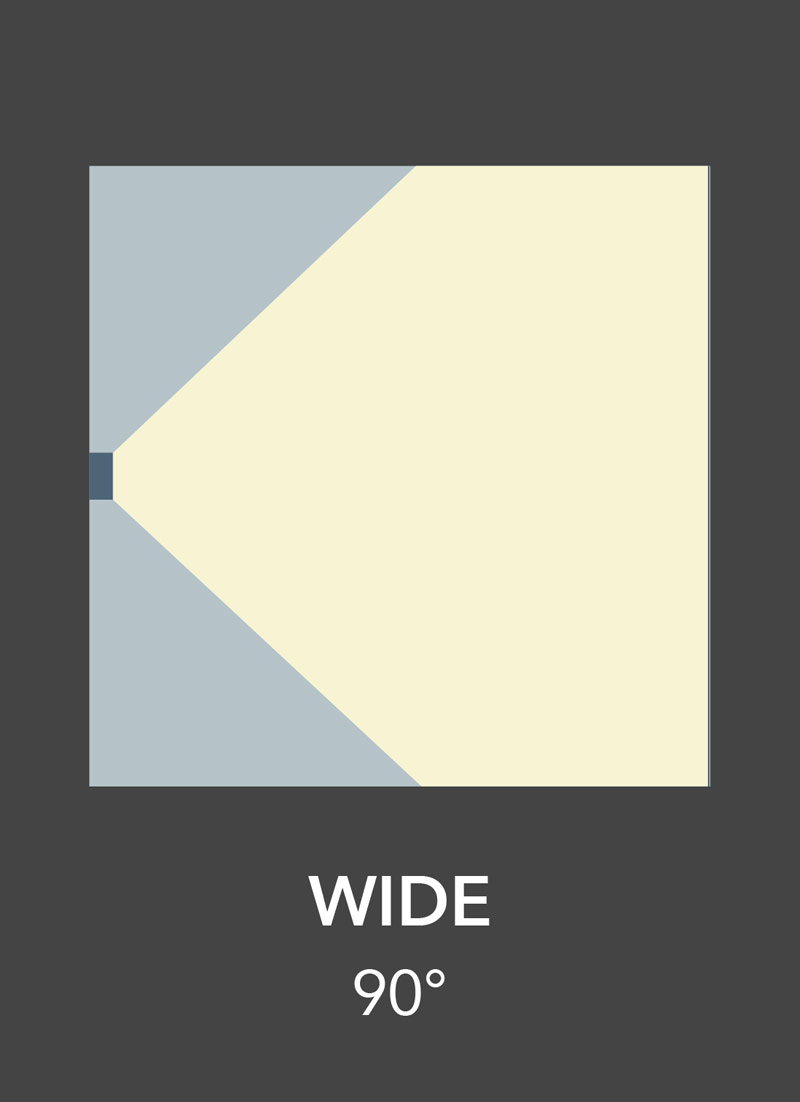

Uniform Washes
Use Wall Wash, Medium Flood, or Wide Flood to evenly cover broad surfaces, keeping beam edges within panel borders to minimize spill.
Mounting
STM Stanchion Mounts
Ground or wall/surface stanchions that manage conduit cleanly and elevate fixtures in landscape beds. Standard heights are 12″, 18″, and 24″, with custom lengths available. Ideal where posts or conduit are preferred over in-grade installations.
EAM Extended Arm Mounts
Stand-offs of 18″, 24″, or 36″ (custom lengths available) to project fixtures off walls or canopies when no overhang or deeper setback is needed.
Optic Choices
Side View
Technical Specifications
Form Factor & Lengths
1-ft (1051), 2-ft (1052), 4-ft (1054), plus compact 1050 head for tight/constrained sites
CCT & CRI
Static white 2700K–5000K, RGBW with Tunable White 80+ CRI
Finishes
18 standard finishes; custom finishes available to match brand or site palette
Optic Choices

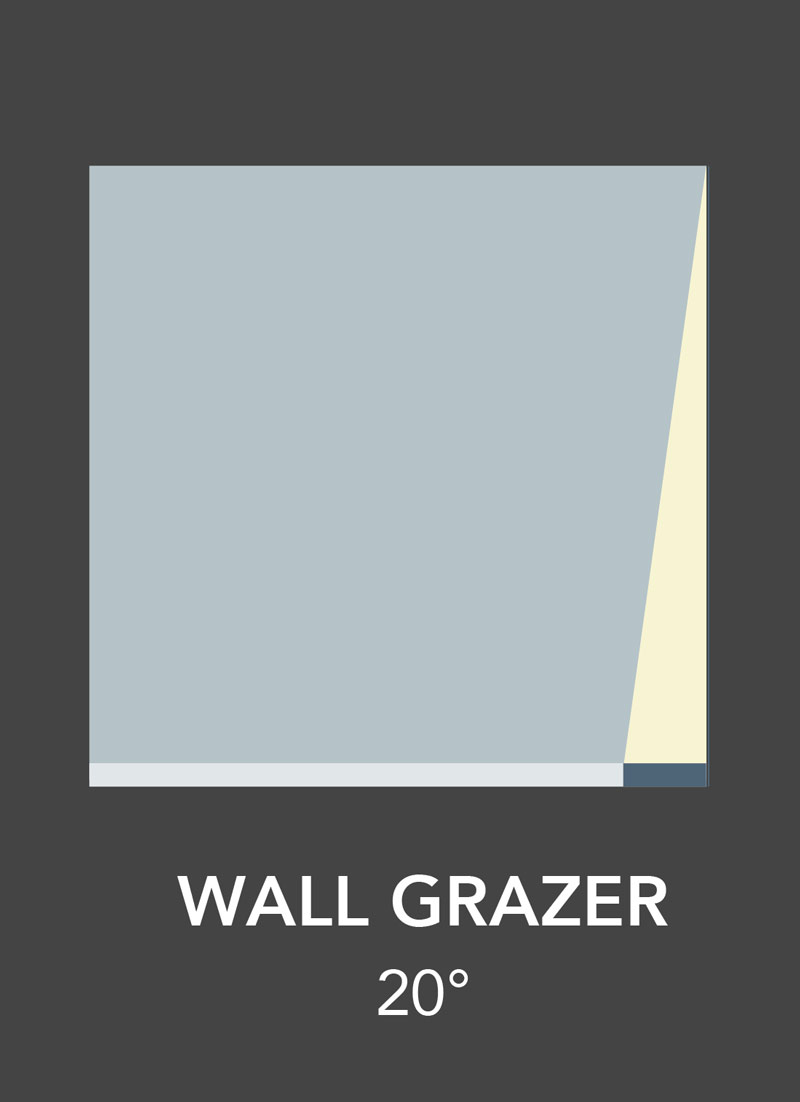

Six distributions: Wall Wash, Wall Grazing, Narrow, Medium Flood, Wide Flood, Asymmetric; allows control over uniformity, punch, and cutoff
Build
Die-cast and extruded aluminum with sealed optics and tempered glass lens
IP Rating
IP66 (Linear Floodlight), IP68 (Linear Ingrade) for demanding exterior use
Finish
Durable powder coat finish for corrosion resistance and long-term durability
Round Floodlight Sign Lighting
Vista Pro Round Floodlights deliver high performance and versatile design for any sign illumination project. Multiple sizes and mounting options provide the right output for compact or high-lumen applications. Static white options with excellent CRI, along with 18 standard finishes and custom colors, allow seamless integration with any brand or site. Built from die-cast aluminum with sealed optics and tempered glass, these fixtures are durable for demanding exterior conditions, featuring IP66 protection and a corrosion-resistant powder-coat finish.
Voltage & Dimming
Universal 120–277V compatibility with ELV, TRIAC, and 0–10V dimming options for seamless integration with a wide range of control systems.
Output Range
Scalable performance from subtle accent lighting to powerful long-throw illumination, with outputs ranging from approximately 135 to 10,700 lumens.
Mounting

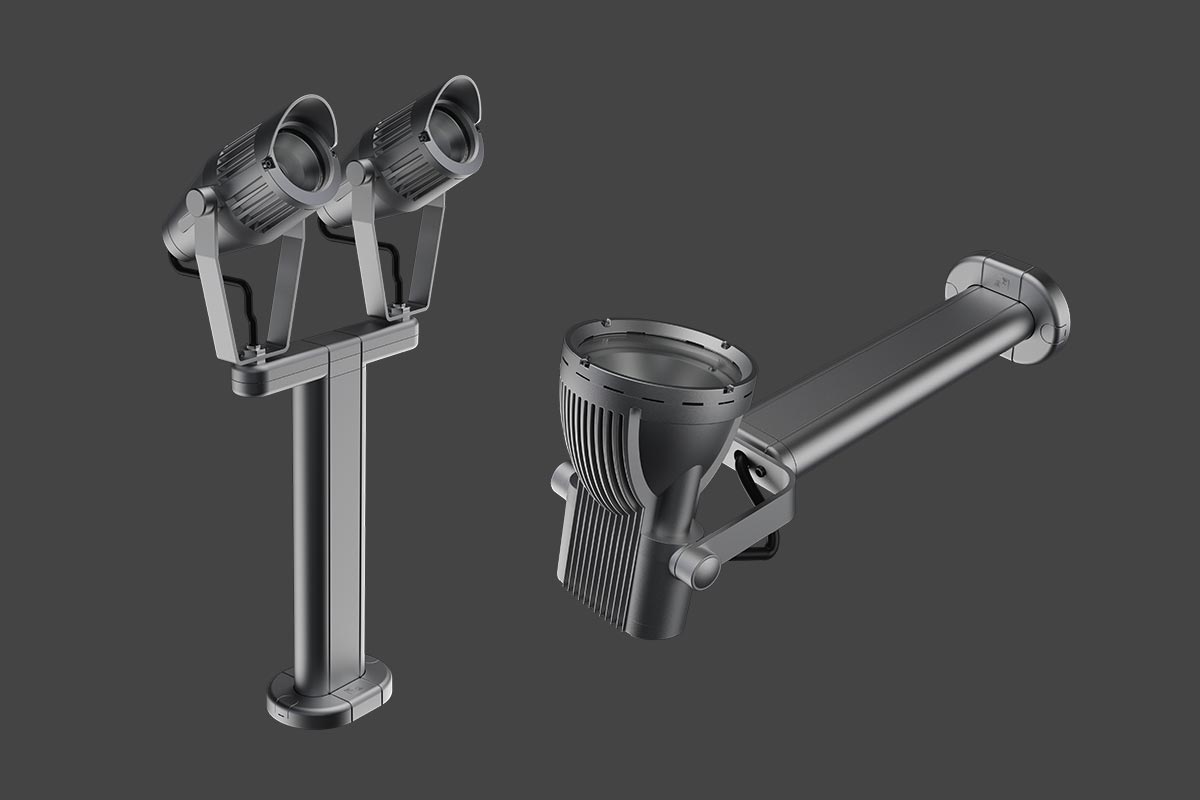

STM Stanchion Mounts
Designed for clean conduit management and elevated mounting in landscape beds, with ground, wall, or surface applications. Available in standard heights with custom options, and recommended for wall mounting larger heads such as 1057 and 1059 where added strength and stability are required.

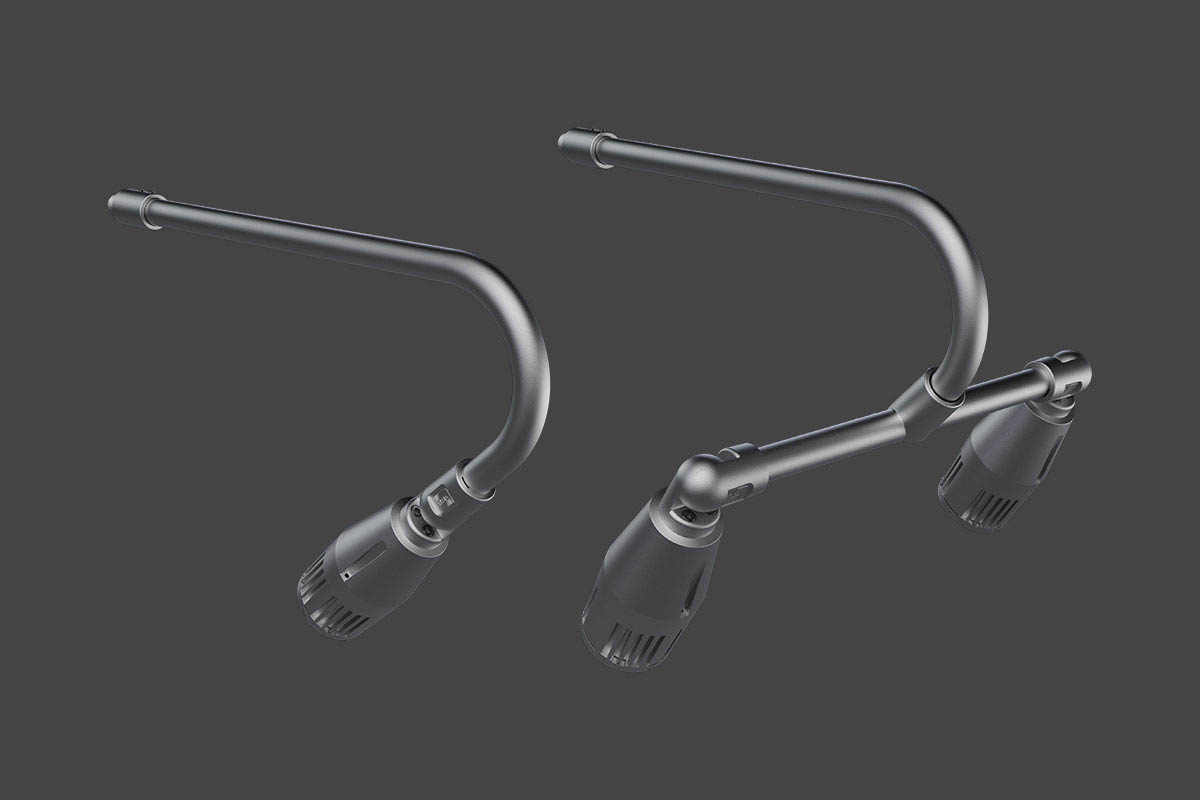

EAM Extended Arm Mounts
Offered in single or double arms with straight or swept options, featuring standard 18″, 24″, and 36″ stand-offs with custom lengths available. Ideal for projecting fixtures past trims or parapets to achieve clean aim paths. Best suited for small to mid-size floodlights.
Technical Specifications
Families & Sizes
Compact 1043, higher-output 1045 with Knuckle/Yoke variants (1043Y, 1045Y); larger 1057, 1059 heads for high-lumen applications
CCT & CRI
Static white 2700K, 3000K, 3500K, 4000K, 5000K; 80+ CRI
Finishes
18 standard finishes; custom finishes available to match brand or site palette
Build
Die-cast A360 aluminum housings and doors, tempered glass lens, sealed optic and driver compartments
IP Rating
IP66 for demanding exterior use
Finish
Robust powder-coat finish; custom colors available
Linear In-Grades
