1057 + STM-S
1057-Sign.jpg1057 + STM-S
LED Sign Light on a Stanchion Mount

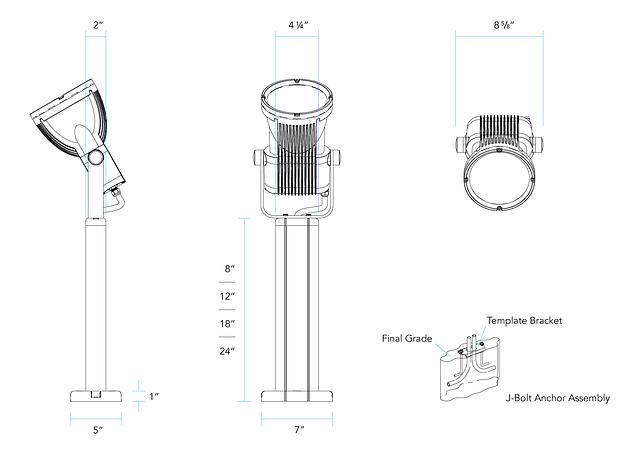

The 1057 + STM-S is a Sign Light fixture with integrated Chip-On-Board (COB) LED. Designed with spun reflector optics and integral drivers, it is housed in a die-cast aluminum body. This fixture offers high lumen outputs ranging from 1600 to 5800 lumens. It supports both 0-10V and Phase Cut dimming options. The 1057's aim is easily adjusted via an aluminum Yoke Strap on a Stanchion Mount, allowing for a variety of lighting applications. It's finished with a durable polyester powder coat, available in 18 standard colors.
Resources
1057
Shape
- Round
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 1603 Lm
- 1613 Lm
- 1685 Lm
- 1835 Lm
- 2214 Lm
- 2263 Lm
- 2396 Lm
- 2589 Lm
- 2720 Lm
- 2748 Lm
- 2775 Lm
- 2825 Lm
- 3892 Lm
- 3928 Lm
- 4218 Lm
- 4241 Lm
- 4260 Lm
- 4597 Lm
- 4796 Lm
- 4819 Lm
- 5778 Lm
Materials
- Aluminum
Mounting
- STM
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP66
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 18 w
- 28 w
- 38 w
- 42 w
- 43 w
- 47 w
- 56 w
- 57 w
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase-Cut
- Tri-Dimming
- Triac (Leading Edge)
