1045 + STM-S
1045-Sign.jpg1045 + STM-S

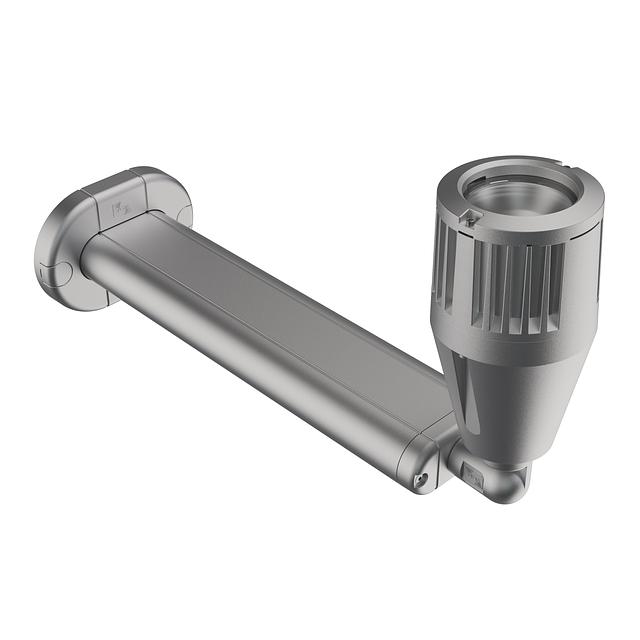

LED Sign Light on a Stanchion Mount
The 1045 + STM-S is a Sign Light fixture with integrated Chip-On-Board (COB) LED. It's equipped with high-performance reflector optics, integral drivers, and is crafted from die-cast aluminum. The 1045 offers high lumen outputs between 1100 - 2400 lumens. It supports both 0-10V and Phase Cut dimming options. Its door is specifically designed to shed water from the lens surface. A durable polyester powder coat finish is applied to the 1045, available in 18 standard colors. The fixture's fully adjustable Infinity Knuckle is mounted on a Stanchion Mount, suitable for a variety of lighting applications.
Resources
1045
Shape
- Round
Beam Angle
- 17
- 19
- 30
- 50
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 1141 Lm
- 1163 Lm
- 1249 Lm
- 1302 Lm
- 1409 Lm
- 1682 Lm
- 1807 Lm
- 1883 Lm
- 2077 Lm
- 2230 Lm
- 2325 Lm
Materials
- Aluminum
Mounting
- STM
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP66
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 14 w
- 21 w
- 26 w
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase-Cut
- Tri-Dimming
- Triac (Leading Edge)
