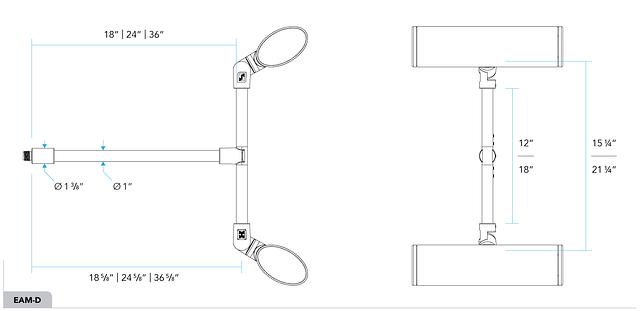

1051KM + EAM-D

Double Linear LED Sign Light on an Extended Arm Mount

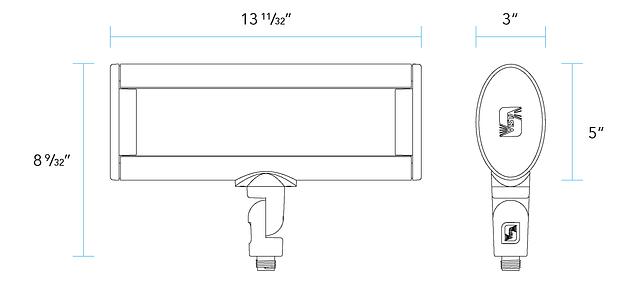

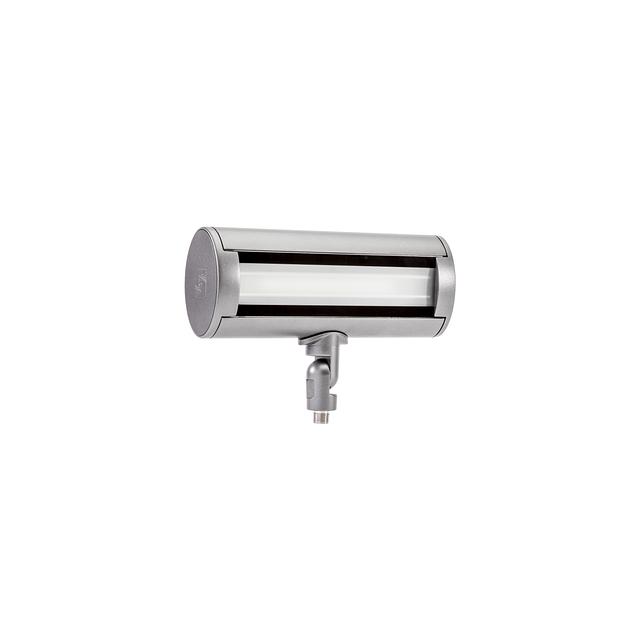

The 1051KM + EAM-D is a Double 13-inch Linear LED Sign Light fixture mounted on an Extended Arm Mount, making it suitable for a variety of lighting applications. This fixture integrates seamlessly with Vista's patented Infinity Knuckle, ensuring precise aiming and robust attachment to 4-0 boxes, conduit, and other electrical connections.  Crafted for durability and versatility, the 1051KM  produces up to 2,103 lumens per foot in six unique distributions​. It supports both 0-10V and Phase Cut dimming options, with color temperatures ranging from 2700°K to 5000°K. A durable polyester powder coat finish is applied, available in 18 standard colors.
Specification Sheet

Resources

1051

Shape

  • Linear

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 80

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Graphite Metallic
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 875
  • 1054
  • 1132
  • 1201
  • 1286
  • 1314
  • 1332
  • 1604
  • 1686
  • 1866
  • 2029
  • 2103

Materials

  • Aluminum

Mounting

  • EAM

Ratings & Compliance

  • Build America Buy America (BABA)
  • Buy American Act (BAA)
  • IP66

Static LED Color

  • White

Voltage

  • 120-277 V

Watts

  • 13.5
  • 19

Dimming Protocol

  • 0-10 V
  • ELV (Trailing Edge)
  • Phase-Cut
  • Tri-Dimming
  • Triac (Leading Edge)
