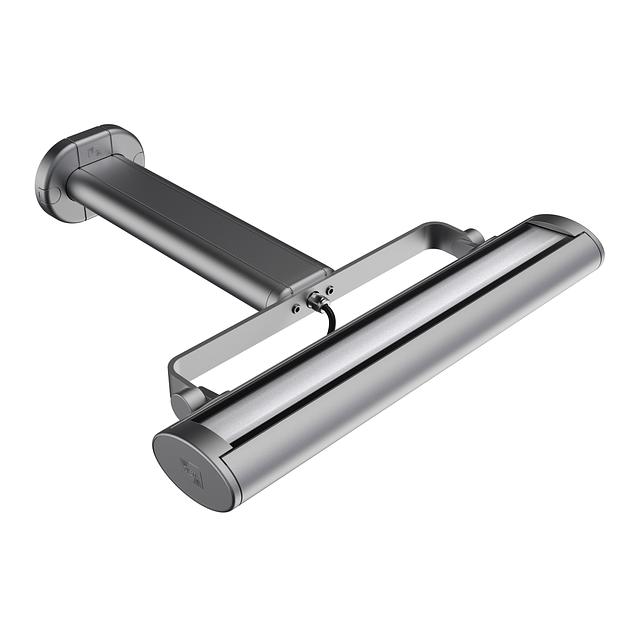

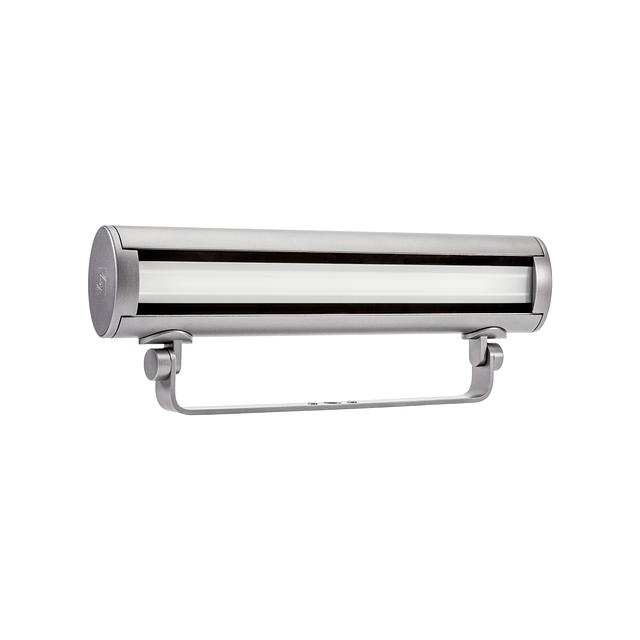

1052YM + STM-S
Linear LED Sign Light on a Stanchion Mount
The 1052YM + STM-S is a 24-inch Linear LED Sign Light fixture mounted on Extended Arm Mounts, making it suitable for a variety of lighting applications. This fixture is engineered for precision and durability, featuring a sturdy yoke mount for exact positioning. Crafted for versatility, the 1052YM delivers up to 1,845 lumens per foot in six unique distributions. It supports both Phase Cut and 0-10V dimming options, with color temperatures ranging from 2700°K to 5000°K. A durable polyester powder coat finish is applied, available in 18 standard colors.
Resources
1052
Shape
- Linear
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 1821
- 2289
- 2307
- 2553
- 2631
- 2696
- 3044
- 3099
- 3132
- 3635
- 3690
- 3914
Materials
- Aluminum
Mounting
- STM
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP66
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 26
- 27.7
- 35.6
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase-Cut
- Tri-Dimming
- Triac (Leading Edge)
