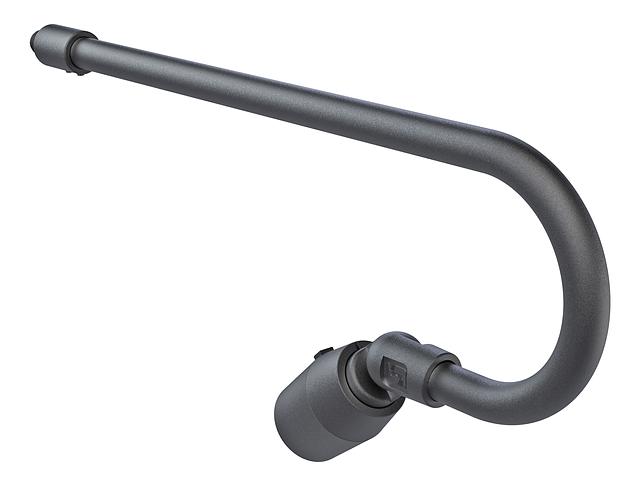

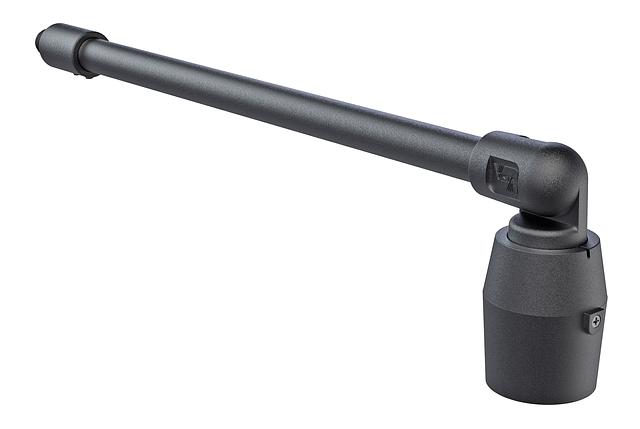

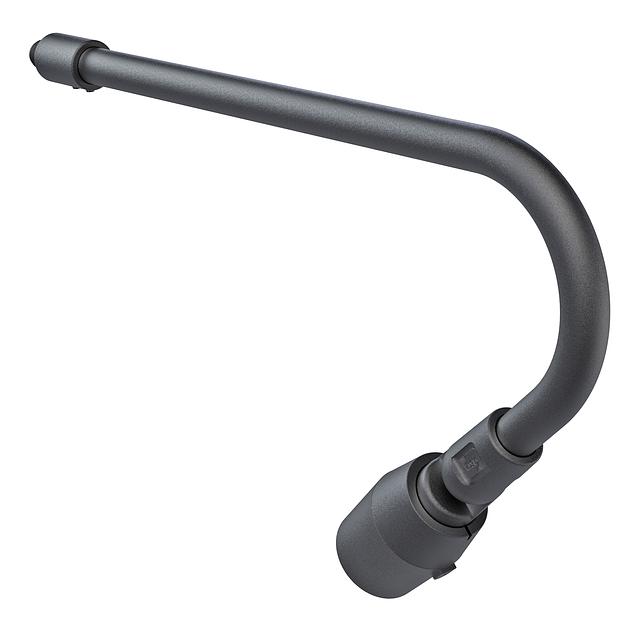

5005-IK + EAM-S

Low Voltage LED Sign Light on an Extended Arm Mount

The 5005-IK + EAM-S is a Sign Light fixture designed to accommodate an MR-16 lamp, emphasizing functionality and durability. Constructed from A360 die-cast aluminum, the fixture offers strength and reliability. A clear, tempered soda-lime glass lens, both shock and heat-resistant, protects the lamp and optics. Its door is designed to shed water from the lens surface, and a durable polyester powder coat finish is available in 18 standard colors. The fixture's fully adjustable Infinity Knuckle is mounted on an Extended Arm Mount, extending the fixture off a surface for a variety of lighting applications.
Specification Sheet

Resources

Share Links
Download

CRI

  • 80

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Graphite Metallic
  • Hunter Green
  • Light Bronze
  • Mocha
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 295
  • 389

Materials

  • Aluminum

Mounting

  • EAM

Ratings & Compliance

  • Build America Buy America (BABA)
  • Buy American Act (BAA)

Static LED Color

  • White

Voltage

  • 12 V

Watts

  • 4.5
  • 5.5
