1043 + STM-S

LED Sign Light on a Stanchion Mount

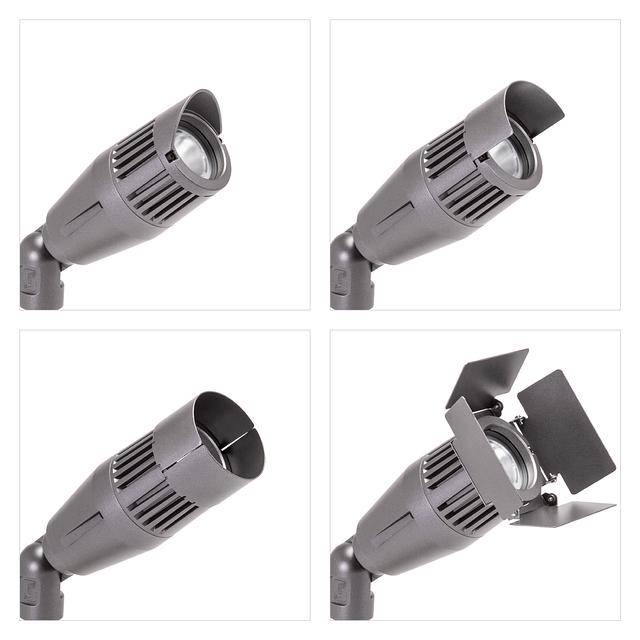

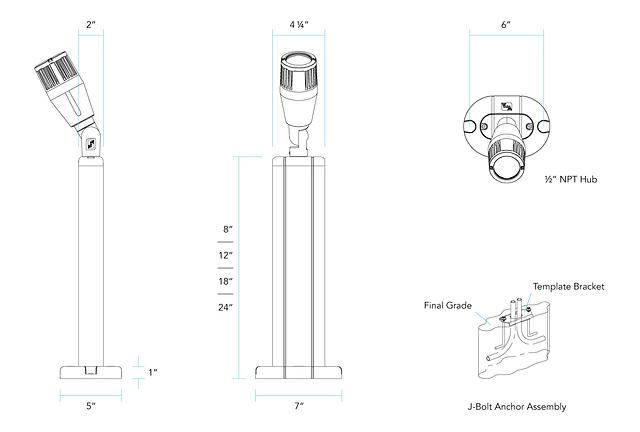

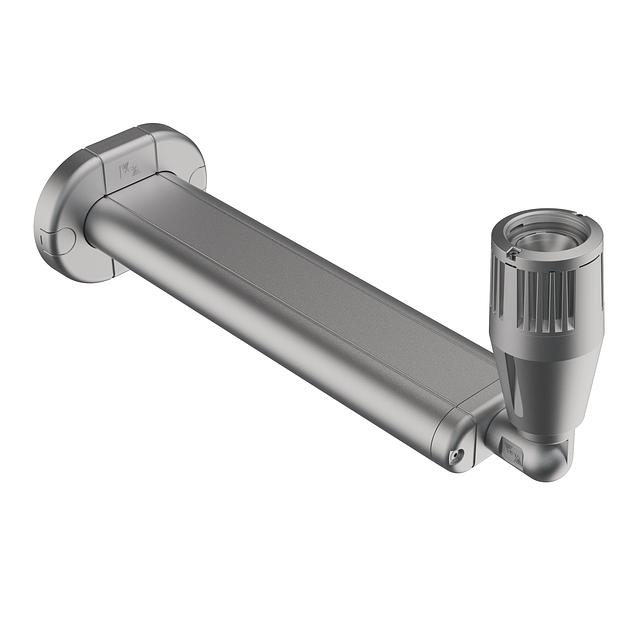

The 1043 + STM-S is a Sign Light fixture with integrated high-density array (HDA) LED. It's equipped with high-performance reflector optics, integral drivers, and is crafted from die-cast aluminum. The 1043 is capable of delivering up to 1200 lumens, with wattages ranging from 4.5W to 20W. It supports both 0-10V and Phase Cut dimming options.​ Its door is specifically designed to shed water from the lens surface. A durable polyester powder coat finish is applied to the 1043, available in 18 standard colors. The fixture's fully adjustable Infinity Knuckle is mounted on a Stanchion Mount, suitable for a variety of lighting applications.
Specification Sheet

Resources

1043

Shape

  • Round

Beam Angle

  • 16
  • 19
  • 30
  • 45

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 80 CRI

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Graphite Metallic
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 135 Lm
  • 321 Lm
  • 332 Lm
  • 361 Lm
  • 364 Lm
  • 487 Lm
  • 542 Lm
  • 566 Lm
  • 687 Lm
  • 711 Lm
  • 738 Lm
  • 957 Lm
  • 1035 Lm
  • 1052 Lm
  • 1188 Lm
  • 1212 Lm

Materials

  • Aluminum

Mounting

  • STM

Ratings & Compliance

  • Build America Buy America (BABA)
  • Buy American Act (BAA)
  • IP66

Static LED Color

  • White

Voltage

  • 120-277 V

Watts

  • 5 w
  • 7.5 w
  • 10 w
  • 16 w
  • 17 w
  • 19 w

Dimming Protocol

  • 0-10 V
  • ELV (Trailing Edge)
  • Phase-Cut
  • Tri-Dimming
  • Triac (Leading Edge)
