1052KM + EAM-S

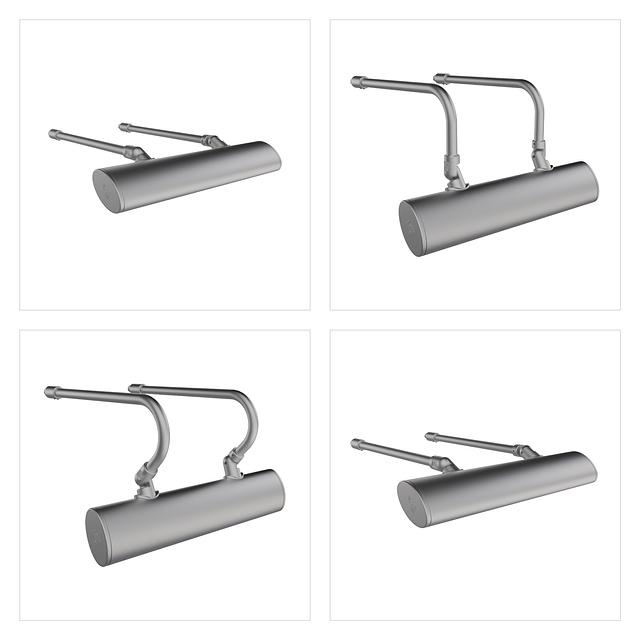

Linear LED Sign Light on Extended Arm Mounts

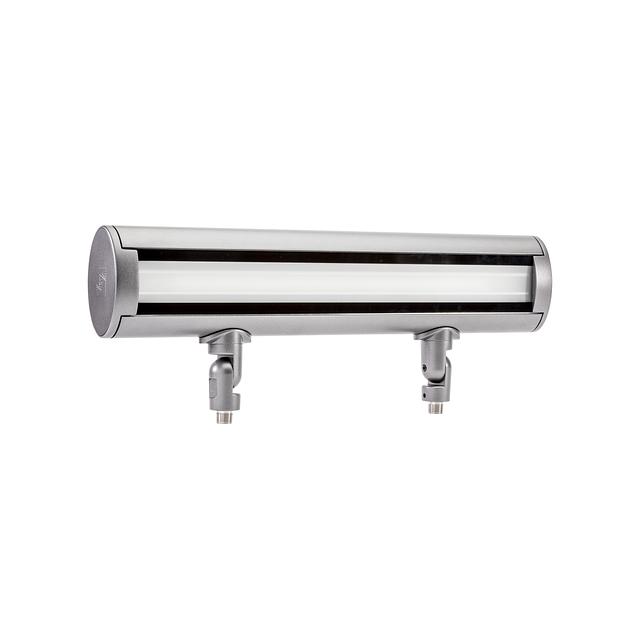

The 1052KM + EAM-S is a 24-inch Linear LED Sign Light fixture mounted on Extended Arm Mounts, making it suitable for a variety of lighting applications. This fixture integrates seamlessly with Vista's patented Infinity Knuckle for precise aiming and robust attachment to 4-0 boxes, conduit, and other electrical connections. The 1052KM is designed for durability and versatility, producing up to 1,845 lumens per foot in six unique distributions. It supports both 0-10V and Phase Cut dimming options, with color temperatures ranging from 2700°K to 5000°K. A durable polyester powder coat finish is applied, available in 18 standard colors.
Resources
1052
Shape
- Linear
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 1821 Lm
- 2289 Lm
- 2307 Lm
- 2553 Lm
- 2631 Lm
- 2696 Lm
- 3044 Lm
- 3099 Lm
- 3132 Lm
- 3635 Lm
- 3690 Lm
- 3914 Lm
Materials
- Aluminum
Mounting
- EAM
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP66
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 26 w
- 27.7 w
- 35.6 w
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase-Cut
- Tri-Dimming
- Triac (Leading Edge)
