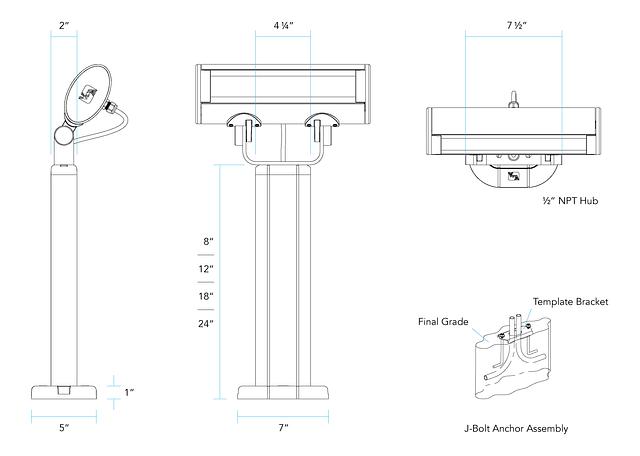

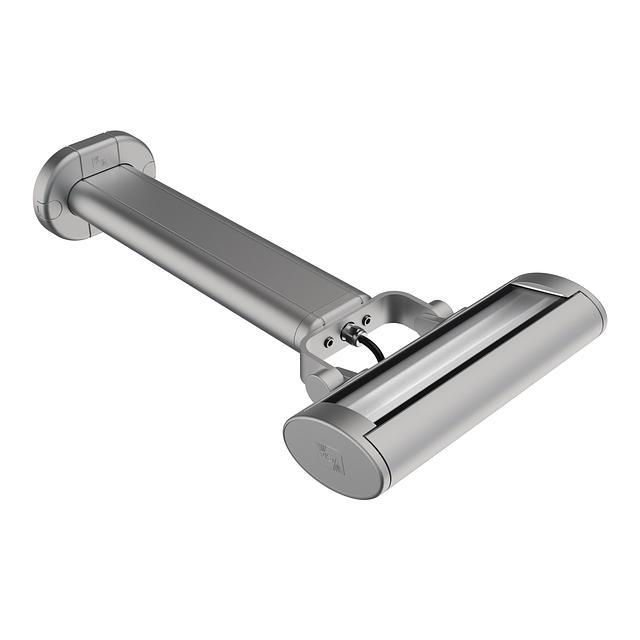

1051YM + STM-S

Linear LED Sign Light on a Stanchion Mount

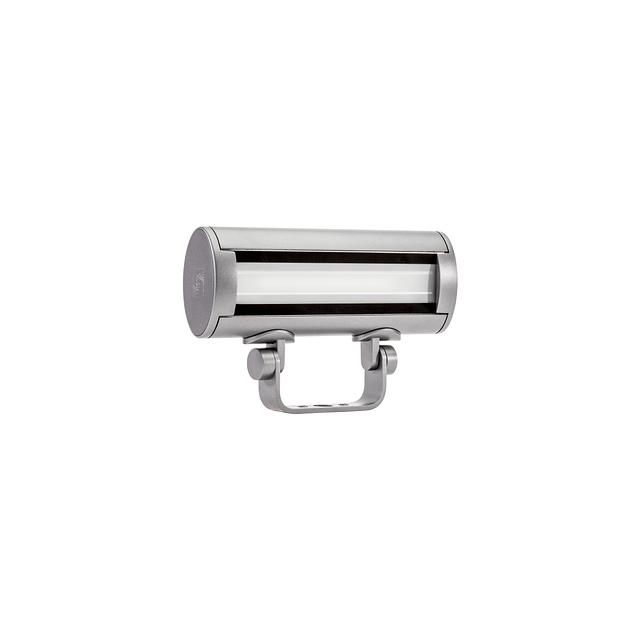

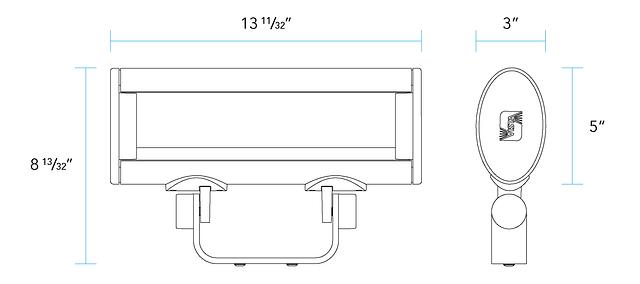

The 1051YM + STM-S is a 13-inch Linear LED Sign Light fixture mounted on a Stanchion Mount, making it suitable for a variety of lighting applications. This fixture is engineered for precision and durability, featuring a sturdy yoke mount for exact positioning. Crafted for durability and versatility, the 1051YM delivers up to 2,103 lumens per foot in six unique distributions. It supports both 0-10V and Phase Cut dimming options, with color temperatures ranging from 2700°K to 5000°K. A durable polyester powder coat finish is applied, available in 18 standard colors.
Specification Sheet

Resources

1051

Shape

  • Linear

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 80 CRI

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Graphite Metallic
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 875 Lm
  • 1054 Lm
  • 1132 Lm
  • 1201 Lm
  • 1286 Lm
  • 1314 Lm
  • 1332 Lm
  • 1604 Lm
  • 1686 Lm
  • 1866 Lm
  • 2029 Lm
  • 2103 Lm

Materials

  • Aluminum

Mounting

  • STM

Ratings & Compliance

  • Build America Buy America (BABA)
  • Buy American Act (BAA)
  • IP66

Static LED Color

  • White

Voltage

  • 120-277 V

Watts

  • 13.4 w
  • 13.5 w
  • 19 w

Dimming Protocol

  • 0-10 V
  • ELV (Trailing Edge)
  • Phase-Cut
  • Tri-Dimming
  • Triac (Leading Edge)
