1054KM + EAM-S

Linear LED Sign Light on Extended Arm Mounts

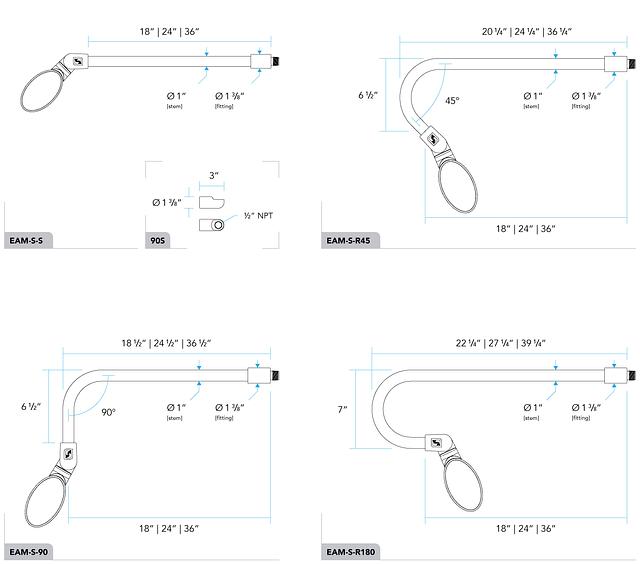

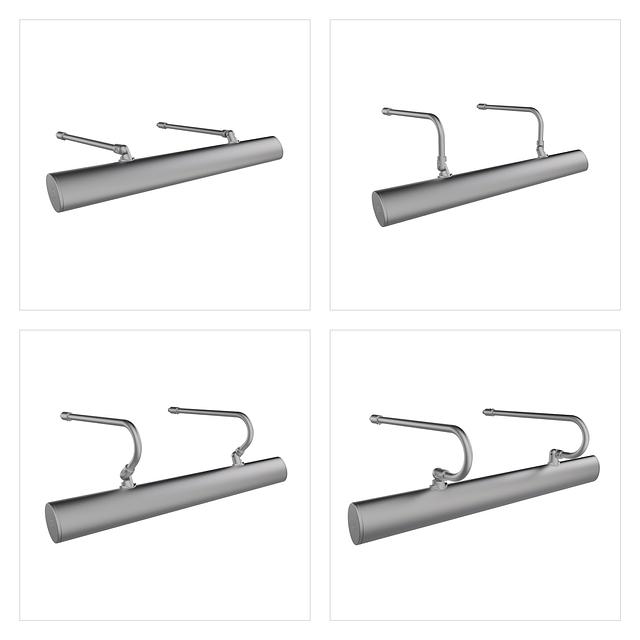

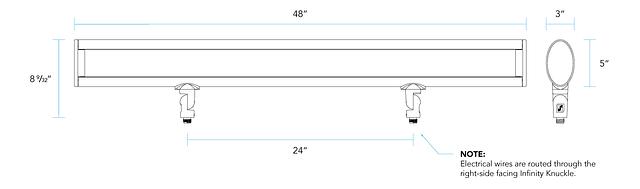

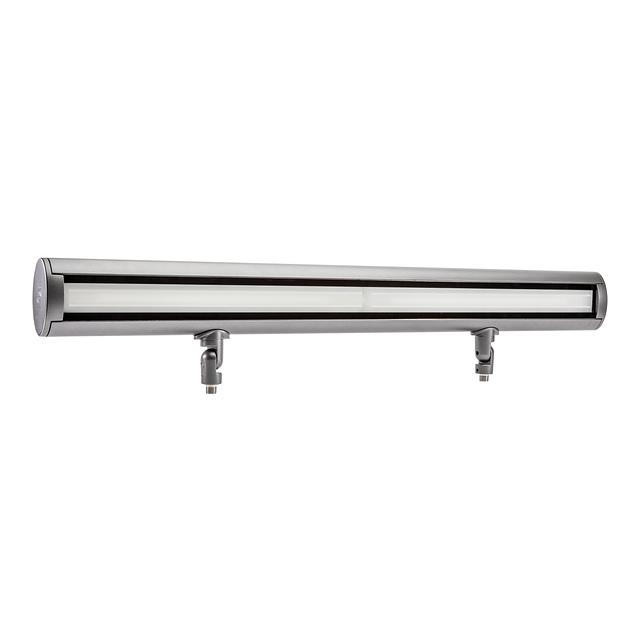

The 1054KM + EAM-S is a 48-inch Linear LED Sign Light fixture mounted on Extended Arm Mounts, making it suitable for a variety of lighting applications. This luminaire integrates with Vista's patented Infinity Knuckle, ensuring precise aiming and robust attachment to 4-0 boxes, conduits, and other electrical connections. The 1054KM stands out with its ability to produce up to 2,097 lumens per foot across six unique distributions. It supports Phase Cut and 0-10V dimming options, with color temperatures ranging from 2700°K to 5000°K, making it versatile for diverse lighting needs. A durable polyester powder coat finish is applied, available in 18 standard colors.
Specification Sheet

Resources

1054

Shape

  • Linear

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 80 CRI

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Graphite Metallic
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 4791 Lm
  • 5099 Lm
  • 5335 Lm
  • 5989 Lm
  • 5990 Lm
  • 6122 Lm
  • 6792 Lm
  • 7123 Lm
  • 7232 Lm
  • 8155 Lm
  • 8191 Lm
  • 8391 Lm

Materials

  • Aluminum

Mounting

  • EAM

Ratings & Compliance

  • Build America Buy America (BABA)
  • Buy American Act (BAA)
  • IP66

Static LED Color

  • White

Voltage

  • 120-277 V

Watts

  • 52 w
  • 55.5 w
  • 72 w

Dimming Protocol

  • 0-10 V
  • ELV (Trailing Edge)
  • Phase-Cut
  • Tri-Dimming
  • Triac (Leading Edge)
