1059 + STM-S
1059-Sign.jpg1059 + STM-S

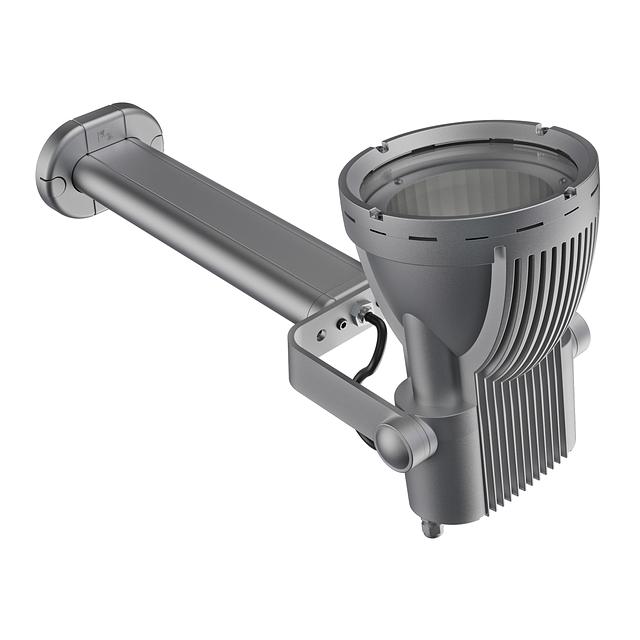

LED Sign Light on a Stanchion Mount
The 1059 + STM-S is a Sign Light fixture with integrated Chip-On-Board (COB) LED. Designed with spun reflector optics and integral drivers, it is housed in a die-cast aluminum body. This fixture offers high lumen outputs ranging from 2400 to 10700 lumens. It supports both 0-10V and Phase Cut dimming options. The 1059's aim is easily adjusted via an aluminum Yoke Strap on a Stanchion Mount, allowing for a variety of lighting applications. It's finished with a durable polyester powder coat, available in 18 standard colors.
Resources
1059
Shape
- Round
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 2460 Lm
- 2793 Lm
- 3199 Lm
- 3407 Lm
- 3476 Lm
- 3559 Lm
- 3744 Lm
- 3874 Lm
- 3933 Lm
- 4151 Lm
- 4281 Lm
- 4566 Lm
- 4972 Lm
- 5181 Lm
- 5887 Lm
- 6416 Lm
- 9333 Lm
- 9340 Lm
- 9550 Lm
- 10301 Lm
- 10360 Lm
- 10708 Lm
Materials
- Aluminum
Mounting
- STM
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP66
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 48 w
- 49 w
- 50 w
- 59 w
- 60 w
- 74 w
- 95 w
- 96 w
- 112 w
- 113 w
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
- Phase-Cut
- Tri-Dimming
- Triac (Leading Edge)
