RK97
RK97 - LED Retrofit In-Grade
The RK97 Retrofit Kit is an innovative solution for seamlessly transitioning existing Hydrel® single- or double-lens M9700 Series fixtures to the advanced, energy-efficient Vista LED technology found in the 1188 series. This retrofit kit is designed for ease of installation, eliminating the need to disrupt concrete or hardscapes, thereby saving significant time and effort in commercial settings such as hospitality or theme parks. The RK97 maintains all the high-performance features of the 1188, including Chip-On-Board (COB) LED technology, precision optics, and various light distributions with controlled cutoff. It offers more than 3000 delivered lumens in color temperatures from 2700°K to 5000°K and is IP68 rated. The RK97 Retrofit Kit not only replaces outdated halogen lighting but also enhances it with greater longevity and reduced energy consumption.
Resources
Shape
- Round
Adjustability
- Rotatable Optics
- Tilt Optics
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Stainless Steel
- Verde
- Weathered Bronze
- Weathered Iron
- White
Distribution
- Medium Flood
- Narrow Spot
- Very Narrow Spot
- Wide Flood
Lamp Source
- LED
Listings
- ETL
Lumens
- 1699 Lm
- 2120 Lm
- 2180 Lm
- 2418 Lm
- 2488 Lm
- 2532 Lm
- 2718 Lm
- 2796 Lm
- 2891 Lm
- 3248 Lm
Materials
- Aluminum
Ratings & Compliance
- Build America Buy America Act (BABAA)
- Buy American Act (BAA)
- IP68
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 27.6 w
- 28.3 w
- 29.2 w
- 31.5 w
- 32.3 w
- 33.3 w
- 34.9 w
- 35.4 w
- 36.3 w
- 37.4 w

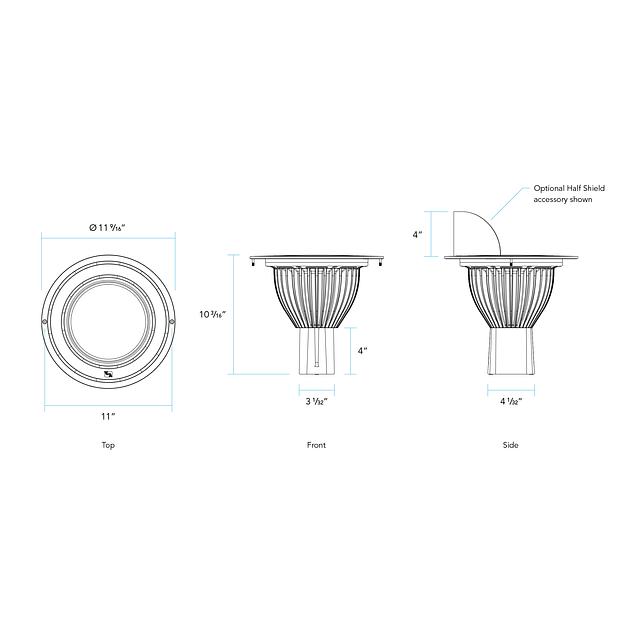

Diameter
- 12 In.
Dimming Protocol
- 0-10 V
- ELV
- Phase-Cut
- Triac
