1045-GB - RGBW Floodlight

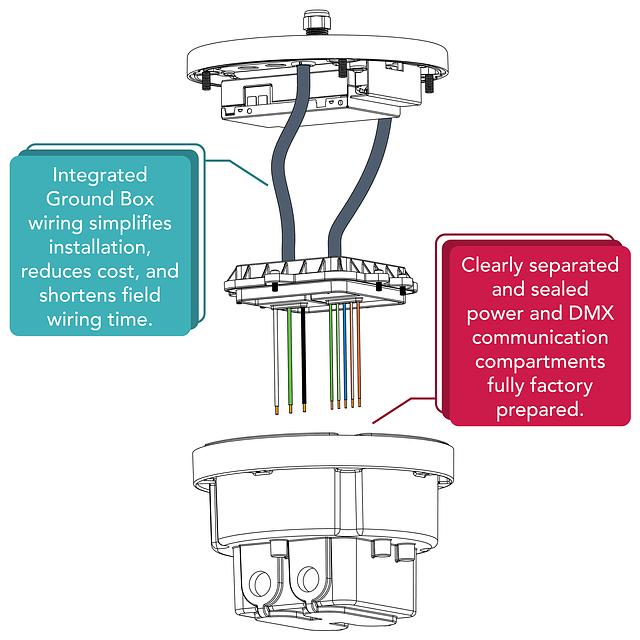

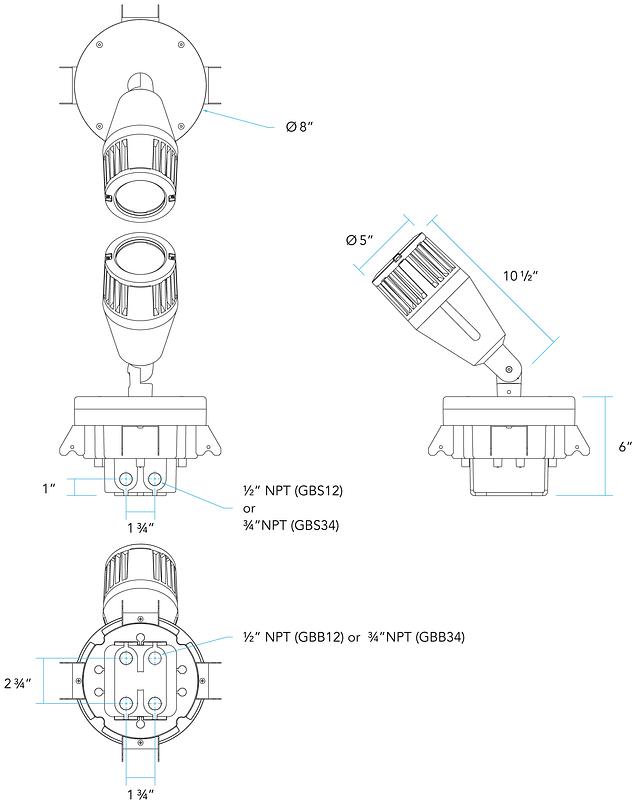

The Spectra by Vista™ 1045-GB is a RGBW LED floodlight designed specifically for ground-mounted applications such as wall washing, wall grazing, asymmetric lighting, sign lighting, and wayfinding. It delivers up to 727 lumens of white light (3000K) with RGB color tuning and tunable white ranging from 2200K to 6000K, available in six optical distributions. The fixture is factory-wired with an 8-conductor outdoor-rated cable sealed using liquid-tight fittings to an injection-molded, glass-filled PPS polymer Ground Box that houses separate, environmentally sealed compartments for power and DMX512 communication splicing. Wiring is simplified, making installation fast and field-friendly. Stainless steel bracketry is provided for secure attachment to rebar in recessed concrete installations. An adjustable extruded aluminum yoke mount, secured with stainless steel hardware, allows precise aiming. A ½" NPT stainless steel cable fitting is factory-installed between the yoke and Ground Box, completing a ready-to-install assembly that streamlines setup. The onboard 4-channel DMX512 driver is fully RDM-compatible and includes a unique 12-digit UID for simple field commissioning.
