5105

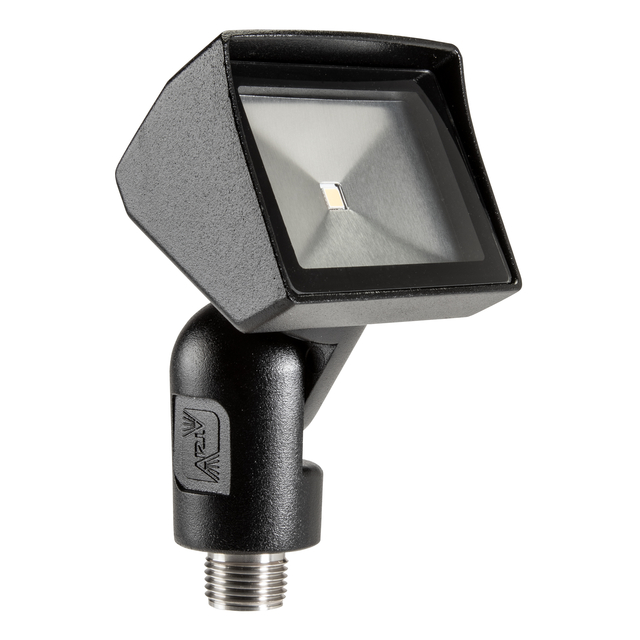

5105 - Low Voltage Floodlight

The 5105 Low Voltage Floodlight is a compact yet powerful lighting solution, integrating factory-fitted LEDs for high-performance illumination. Encased in a robust A360 die-cast, copper-free aluminum body, the fixture is designed for efficiency and durability. Despite its compact size, the 5105 delivers up to 400 lumens with wattages from 2W to 4W and offers color temperature choices from 3000°K to 5000°K. Its high-temperature silicone diaphragm gasket incorporates an air valve to prevent vacuum formation and water entry. The lens, available in clear or frosted tempered soda-lime glass, is shock and heat-resistant, ensuring protection for the LED and reflector. Enhanced by a durable polyester powder coat finish in 18 color options, the 5105 combines aesthetic versatility with resilience. The fully adjustable knuckle, constructed from injection-molded, fiber-reinforced composite, withstands corrosive soil, making it suitable for a variety of outdoor settings. The fixture includes diverse mounting options such as an ABS ground stake, a mounting canopy, or a tree-mount canopy, accommodating different installation requirements.
Specification Sheet

Resources

CCT

  • 3000K
  • 4000K
  • 5000K

CRI

  • 80 CRI

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Graphite Metallic
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Distribution

  • Flood

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 200 Lm
  • 400 Lm

Materials

  • Aluminum

Ratings & Compliance

  • Build America Buy America Act (BABAA)
  • Buy American Act (BAA)

Static LED Color

  • White

Voltage

  • 12 V

Watts

  • 2 w
  • 3 w
  • 4 w

Dimensions

  • H: 4 In. L: 2 In. W: 3 In.

Product Types

  • Up & Accent
