1045-SB - RGBW Floodlight

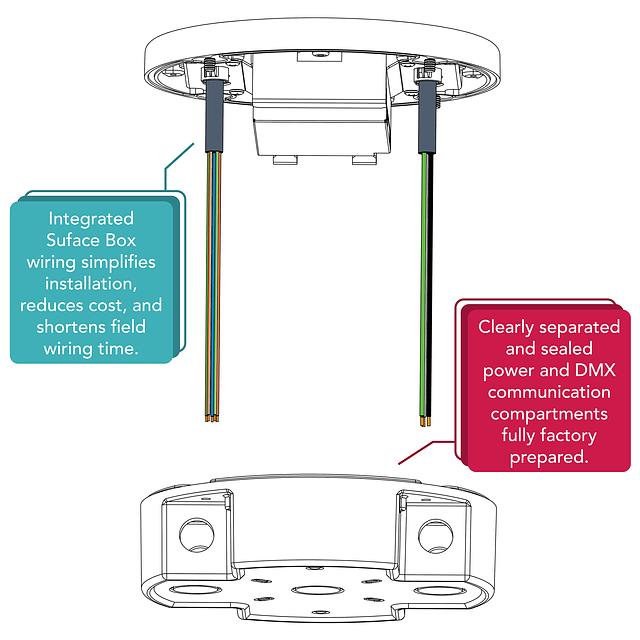

The Spectra by Vista™ 1045-SB is a RGBW LED floodlight designed for surface or wall-mounted applications, including wall washing, wall grazing, asymmetric lighting, sign lighting, and wayfinding. It delivers up to 727 lumens of white light (3000K), with RGB color tuning and tunable white ranging from 2200K to 6000K, available in six optical distributions. The fixture is factory-wired using an 8-conductor outdoor-rated cable sealed with liquid-tight fittings, connected to a die-cast A360 aluminum Surface Box that houses separate, environmentally sealed compartments for power and DMX512 communication splicing. This simplified wiring design makes installation fast and field-friendly. An adjustable extruded aluminum yoke mount, secured with stainless steel hardware, allows for precise aiming. Additionally, a ½" NPT stainless steel cable fitting is factory-installed between the yoke and Surface Box, completing a ready-to-mount configuration that streamlines the entire setup process. The onboard DMX512 driver is fully RDM-compatible and includes a unique 12-digit UID for easy in-field commissioning and addressing.
