1185SE

1185SE - LED Semi-Recessed In-Grade

The 1185SE COB In-Grade Fixture expands upon the versatility of the standard 1185 model, featuring its robust integrated Chip-On-Board (COB) LED technology and precision optics, but uniquely housed within a 12-inch heavy-walled exterior sleeve. This elevation makes it perfectly suited for in-grade applications requiring heightened visibility above plants, bushes, or tree lighting. The SE Series combines the high-performance light distribution of the 1185 with the added benefit of adjustable height, allowing for dynamic and adaptable lighting solutions. This fixture retains the characteristics of the 1185, such as the magnetic hot aiming system for internal tilt optics adjustment and the ventilated flow-through design for optimal cooling. Delivering more than 1700 delivered lumens in various color temperatures from 2700°K to 5000°K, the 1185SE is IP68 rated, ensuring durability and resistance against environmental elements.
Specification Sheet

Resources

Shape

  • Round

Adjustability

  • Rotatable Optics
  • Tilt Optics

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 80 CRI

Color / Finish

  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Stainless Steel
  • Verde
  • White

Distribution

  • Medium Flood
  • Narrow Spot
  • Spot
  • Very Narrow Spot
  • Wide Flood

Lamp Source

  • LED

Listings

  • ETL

Lumens

  • 917 Lm
  • 981 Lm
  • 997 Lm
  • 1141 Lm
  • 1317 Lm
  • 1407 Lm
  • 1431 Lm
  • 1625 Lm
  • 1738 Lm
  • 1766 Lm

Materials

  • Aluminum

Ratings & Compliance

  • Build America Buy America Act (BABAA)
  • Buy American Act (BAA)
  • IP68

Static LED Color

  • White

Voltage

  • 120-277 V

Watts

  • 14.3 w
  • 14.5 w
  • 15 w
  • 20.6 w
  • 20.8 w
  • 25.4 w
  • 25.5 w
  • 25.7 w
  • 26 w

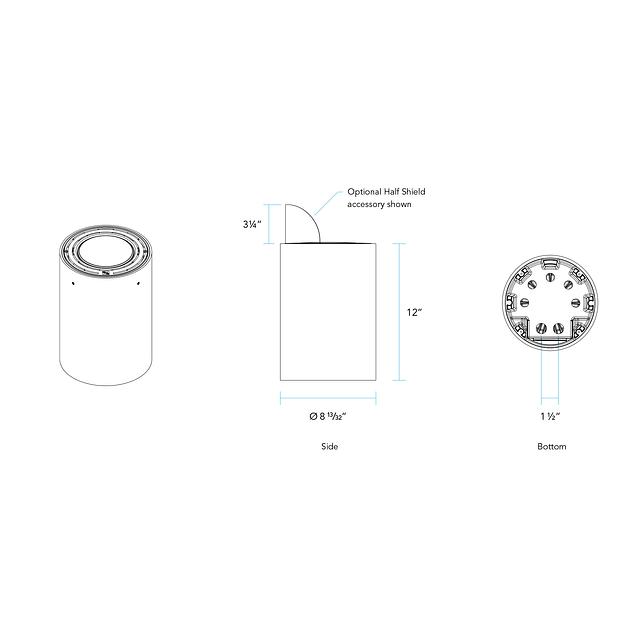

Diameter

  • 8 In.

Dimming Protocol

  • 0-10 V
  • ELV
  • Phase-Cut
  • Triac
