5006

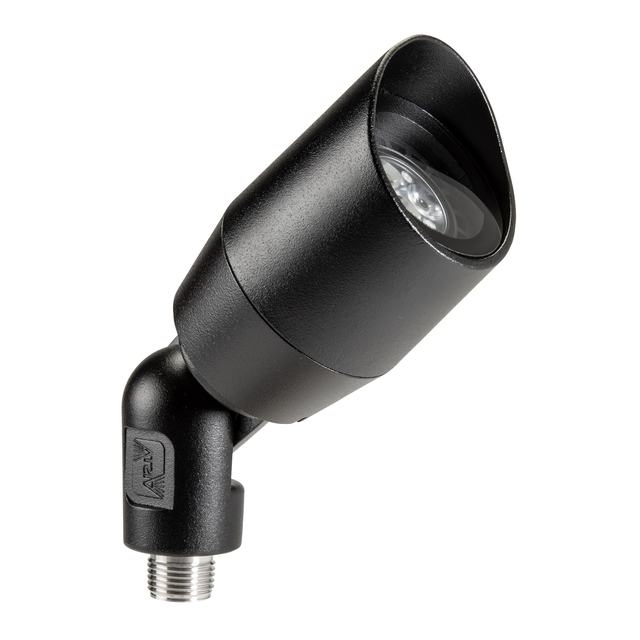

5006 - Low Voltage Up & Accent

The 5006 Low Voltage Up & Accent Fixture is designed to accommodate an MR-16 lamp, emphasizing functionality and durability in its design. Constructed from A360 die-cast, copper-free aluminum, this fixture offers strength and reliability. The housing includes an oversized silicone O-ring to prevent moisture and dust intrusion, while a high-temperature silicone diaphragm gasket at the base incorporates an air valve, preventing vacuum formation and water entry. A clear, tempered soda-lime glass lens, both shock and heat-resistant, ensures the protection of the lamp and optics. Finished with a super durable polyester powder coat, available in 18 colors, the 5006 blends aesthetic appeal with resilience. The fully adjustable knuckle, made from injection-molded, fiber-reinforced composite, isolates the fixture from corrosive soil. Shipped with a standard 4.5W, 36° flood MR-16 LED lamp (unless specified otherwise), the 5006 is equipped with a range of mounting hardware options including an ABS ground stake, a mounting canopy, or a tree-mount canopy to suit diverse installation needs.
Specification Sheet

Resources

Specsheets


Install Guides


CRI

  • 80 CRI

Color / Finish

  • Architectural Brick
  • Architectural Bronze
  • Black
  • Dark Bronze
  • Glossy Gray
  • Granite
  • Graphite Metallic
  • Hunter Green
  • Light Bronze
  • Mocha
  • Olde Finish
  • Pewter
  • Rust
  • Special Bronze
  • Verde
  • Weathered Bronze
  • Weathered Iron
  • White

Distribution

  • Medium Flood
  • Narrow Spot
  • Spot
  • Wide Flood

Lamp Source

  • MR-16

Listings

  • cULus

Lumens

  • 295 Lm
  • 389 Lm

Materials

  • Aluminum

Voltage

  • 12 V

Watts

  • 4.5 w
  • 5.5 w

Dimensions

  • H: 6 In. L: 3 In. W: 3 In.

Product Types

  • Up & Accent
