1502-GR

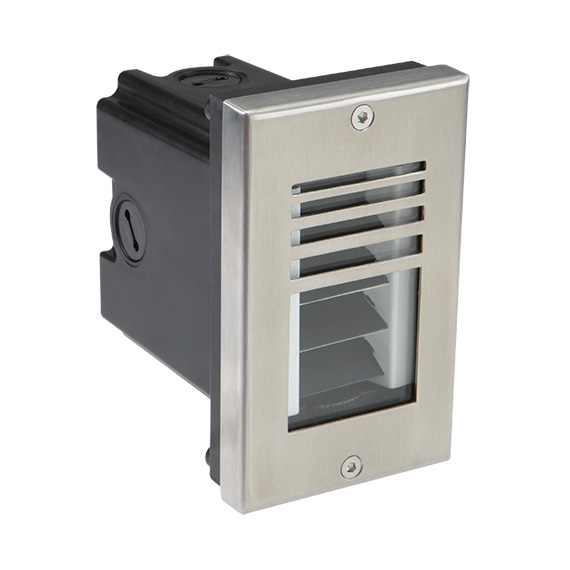

1502 Metal Gradient Step & Marker

The 1502-GR Vertical Step & Marker, uniquely characterized by its Gradient cover plate available in Brass and Stainless Steel, elegantly illuminates steps and low-level features. Built with a compression-molded fiber-reinforced polymer housing, it houses three high-output LED emitters, providing over 270 lumens. The fixture supports color temperatures from 2700°K to 4000°K, and a Turtle Friendly Amber option at 595nm. The modular design facilitates streamlined installation and allows for Quick Ship back boxes, enabling immediate on-site installation while awaiting the final assembly. The fixture's no-glare optics feature a sharp cutoff for precise, balanced illumination. Suitable for installations in various settings, including non-IC and IC environments, the Rough-in box is versatile for concrete, masonry, stone, or wood frame construction. Additionally, the 1502-GR can be installed flush with an optional Flush Tray mount, seamlessly integrating into any design.
Specification Sheet

Resources

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K

CRI

  • 80 CRI

Color / Finish

  • Natural Brass
  • Olde Brass
  • Stainless Steel

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 273 Lm

Materials

  • Brass
  • Steel

Ratings & Compliance

  • IC
  • IP66
  • Non-IC
  • Turtle Safe

Special Programs

  • SplitShip

Static LED Color

  • Amber
  • White

Voltage

  • 120-277 V

Watts

  • 6 w

Faceplate Dimensions

  • 3 In. x 5 In.

Dimensions

  • H: 6 In. L: 4 In. W: 4 In.

Dimming Protocol

  • 0-10 V
  • ELV
  • Phase-Cut
  • Triac
