1188
1188 - LED Drive-Over In-Grade
The 1188 COB In-Grade Fixture is an innovative solution for uplighting architectural and landscape features. Utilizing advanced Chip-On-Board (COB) LED technology paired with precision optics, it delivers high-performance light distributions across four spreads, achieving outputs exceeding 3000 lumens. Color temperatures range from 2700°K to 5000°K. A patented magnetic hot aiming system simplifies the adjustment of internal tilt optics, allowing for precise light control without needing to open the fixture. Its ventilated flow-through design enhances cooling of the LED module by allowing air circulation, while corrugations in the housing improve air-cooling efficiency and structural strength. Designed for drive-over applications, the 1188 can withstand a vertical load of 8,000 pounds and is IP68 rated, ensuring durability and resistance to water ingress.
Resources
Shape
- Round
Adjustability
- Rotatable Optics
- Tilt Optics
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Stainless Steel
- Verde
- White
Distribution
- Medium Flood
- Narrow Spot
- Spot
- Very Narrow Spot
- Wide Flood
Lamp Source
- LED
Listings
- ETL
Lumens
- 1699 Lm
- 2120 Lm
- 2180 Lm
- 2418 Lm
- 2488 Lm
- 2532 Lm
- 2718 Lm
- 2796 Lm
- 2891 Lm
- 3248 Lm
Materials
- Aluminum
Ratings & Compliance
- Drive-Over
- IP68
Special Programs
- SplitShip
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 27.6 w
- 28.3 w
- 29.2 w
- 31.5 w
- 32.3 w
- 33.3 w
- 34.9 w
- 35.4 w
- 36.3 w
- 37.4 w

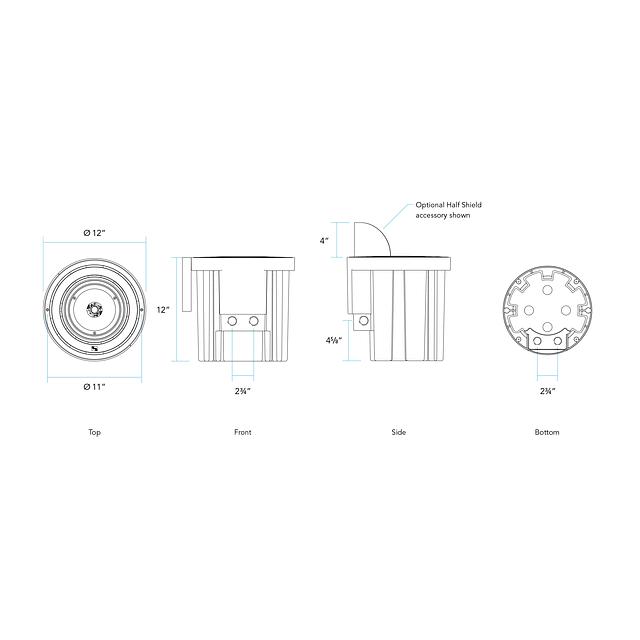

Diameter
- 12 In.
Dimming Protocol
- 0-10 V
- ELV
- Phase-Cut
- Triac
