1181 - LED Semi-Recessed Marker In-Grade

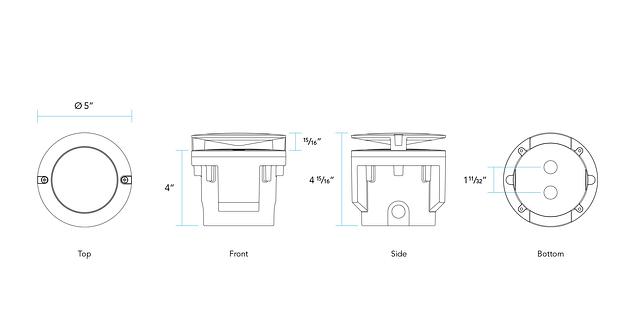

The 1181 marker-light features integrated Chip-On-Board (COB) LED technology, perfectly designed for delineating space edges. Its low-level design casts light outward 180° along the ground, effectively providing visual marking. This compact fixture measures only 5 inches in diameter and 4 inches deep, making it suitable for both indoor and outdoor settings. The fixture is equipped with a piston gasket around the factory-sealed lamping module, ensuring a watertight seal to the Rough-In-Section (RIS), ideal for areas where drainage is challenging. Available in color temperatures from 2700°K to 5000°K, the 1181 is rated to IP68, signifying its excellent resistance to dust and water ingress.
Resources
Shape
- Round
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Architectural Brick
- Architectural Bronze
- Black
- Dark Bronze
- Glossy Gray
- Granite
- Graphite Metallic
- Hunter Green
- Light Bronze
- Mocha
- Olde Finish
- Pewter
- Rust
- Special Bronze
- Stainless Steel
- Verde
- Weathered Bronze
- Weathered Iron
- White
Lamp Source
- LED
Listings
- cULus
Lumens
- 68 Lm
Materials
- Aluminum
Ratings & Compliance
- Build America Buy America Act (BABAA)
- Buy American Act (BAA)
- IC
- IP68
- Non-IC
Special Programs
- SplitShip
Static LED Color
- White
Voltage
- 120 V
- 277 V
- Dual Volt
Watts
- 13 w
Diameter
- 5 In.
Dimming Protocol
- 0-10 V
- ELV
- Phase-Cut
- Triac
