Vista Pro’s Bollard Optics system delivers shadow-free, continuous illumination with configurable quadrant lighting for precise control. The wide lateral throw and customizable design minimize fixture count while maximizing performance. The 1470 & 1471 Bollards create efficient, elegant, and visually seamless lighting for exterior environments.
Continuous Light. Complete Control.
Precision Quadrant Lighting

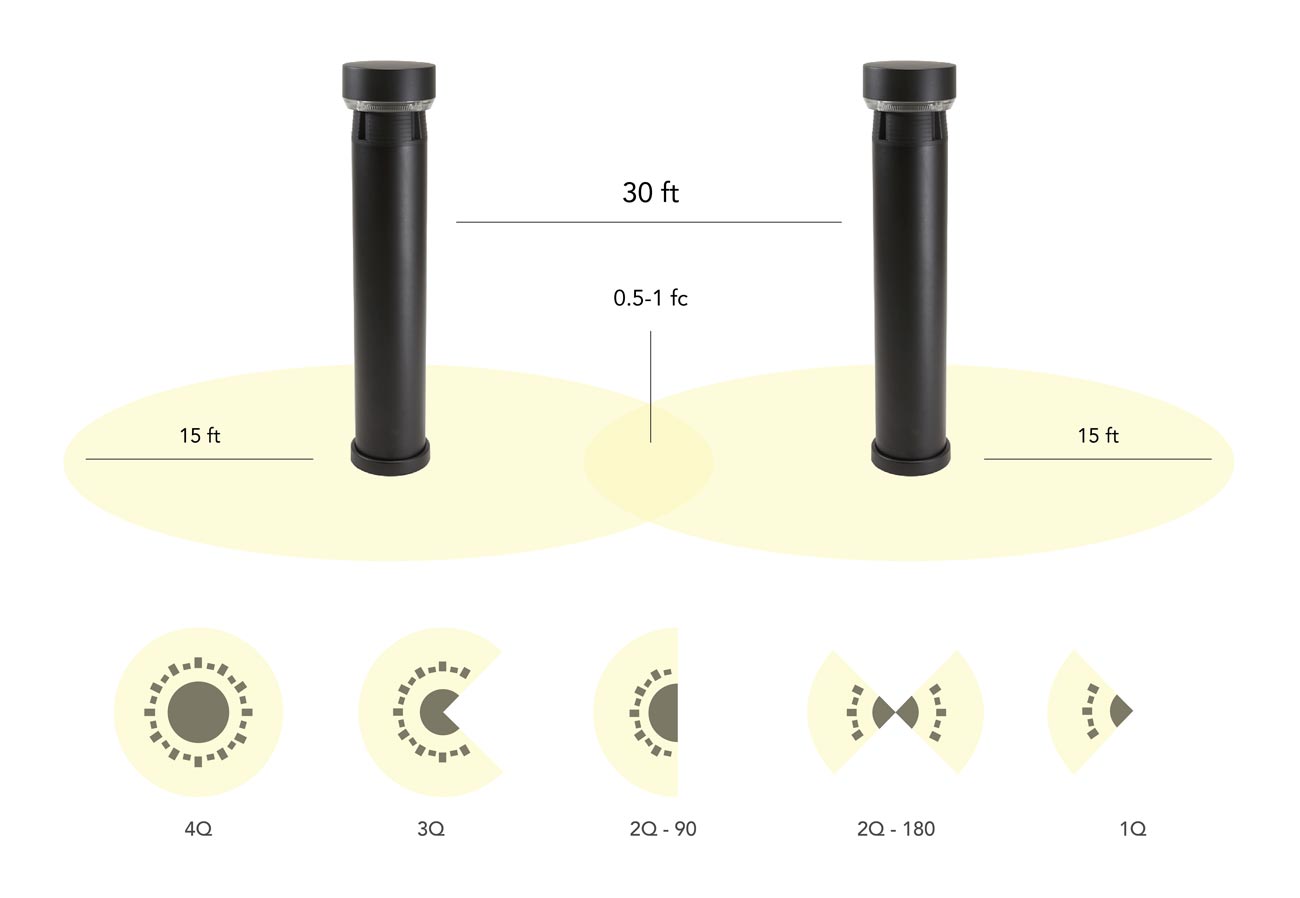

Controlled optics throw up to a 15-foot radius from the fixture, allowing up to 30 feet of spacing between fixtures while maintaining approximately 0.5–1 footcandle in the center. CREE XTE LEDs (7–35W) provide 380–2,100+ lumens in 2700K–5000K. Durable 3/16″ extruded aluminum posts feature a patent-pending anchorage with up to 5° vertical adjustment for leveling. Wet-location rated and available in 30″, 36″, and 42″ lengths, with custom sizes on request.
Key Features
360° Continuous Light Output
Light extends seamlessly from base to top, eliminating shadow bands caused by traditional housings.
Shadow-Free Design
Uniform illumination without dark zones or cutoffs.
Wide Lateral Throw
Efficiently lights broader paths, allowing for greater spacing between fixtures.
Quadrant Lighting Options
Configure output for 90°, 180°, 270°, or full 360° coverage — only use light where needed.
Customizable Construction
Available in standard 36–42″ lengths, or custom sizes via extruded aluminum housing.
Energy & Cost Efficiency
Fewer fixtures required, lower energy use, and reduced installation costs.
How It Works

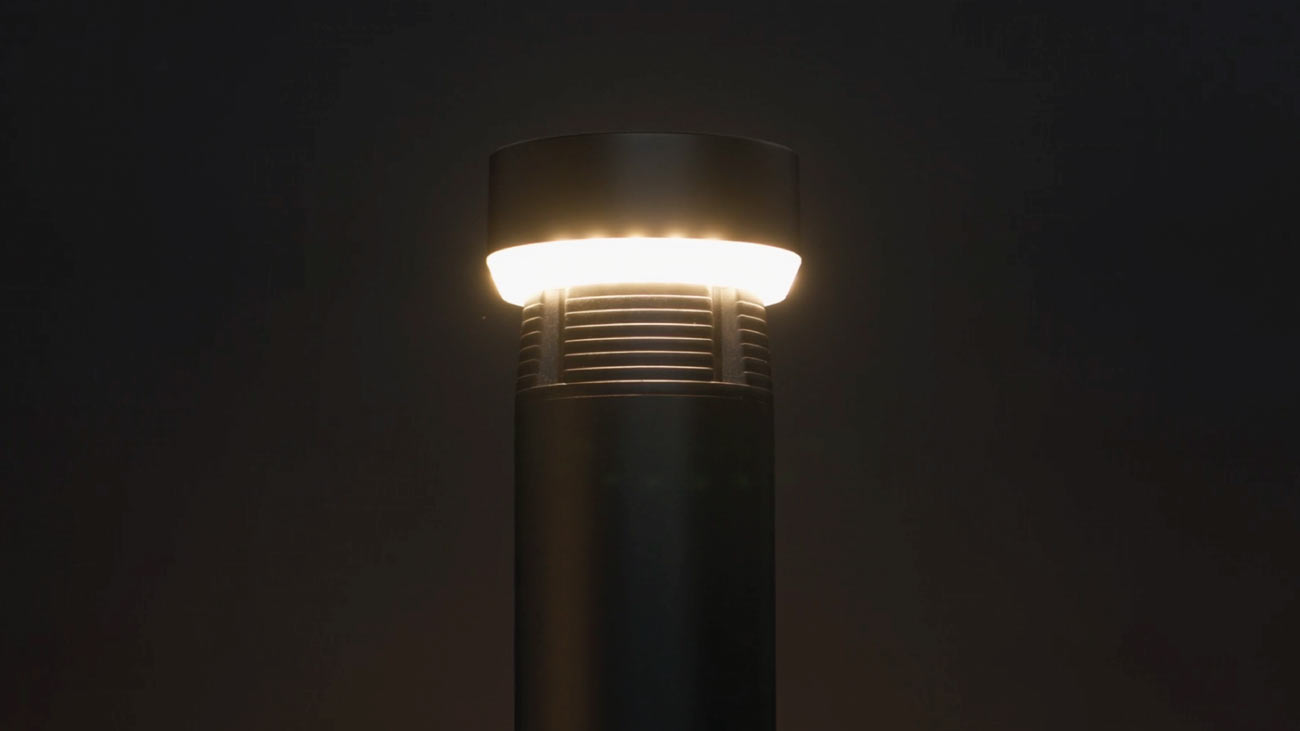

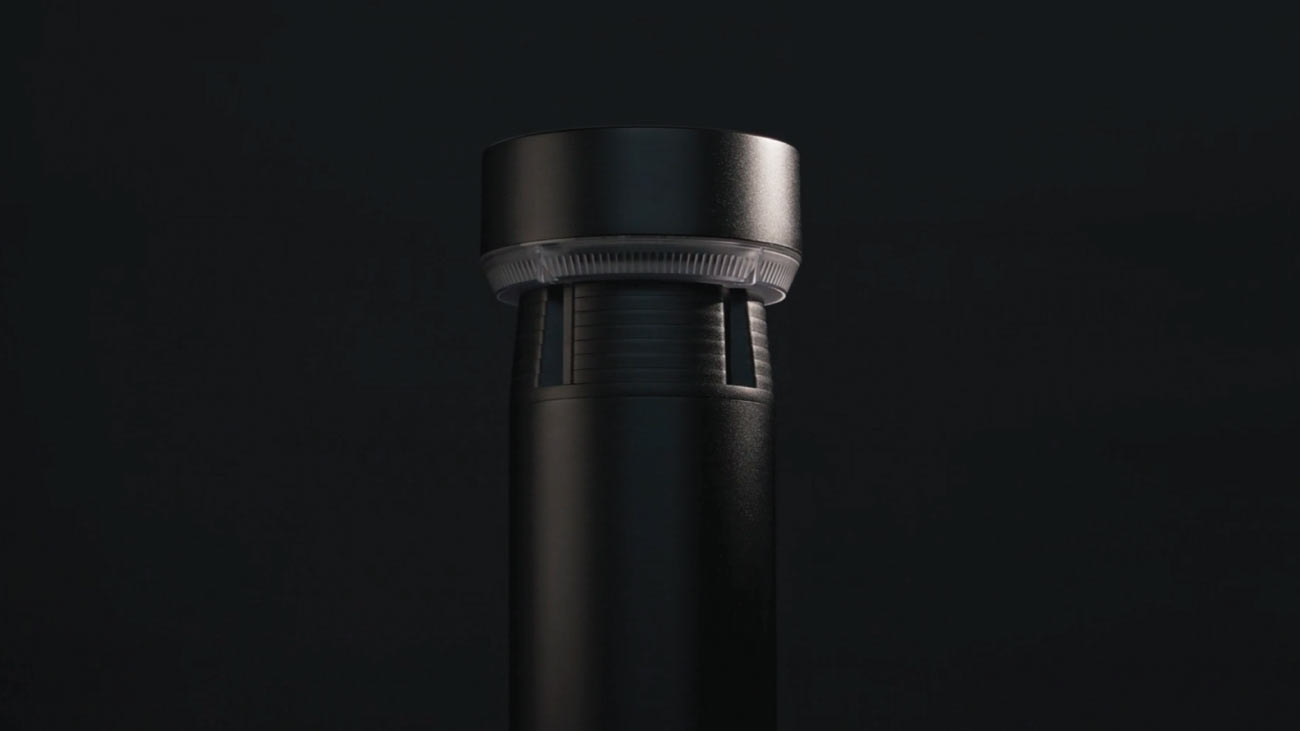

A continuous LED PCB runs vertically through the bollard’s body, ensuring light.
The internal optic evenly diffuses light outward, preventing glare while maintaining full brightness.

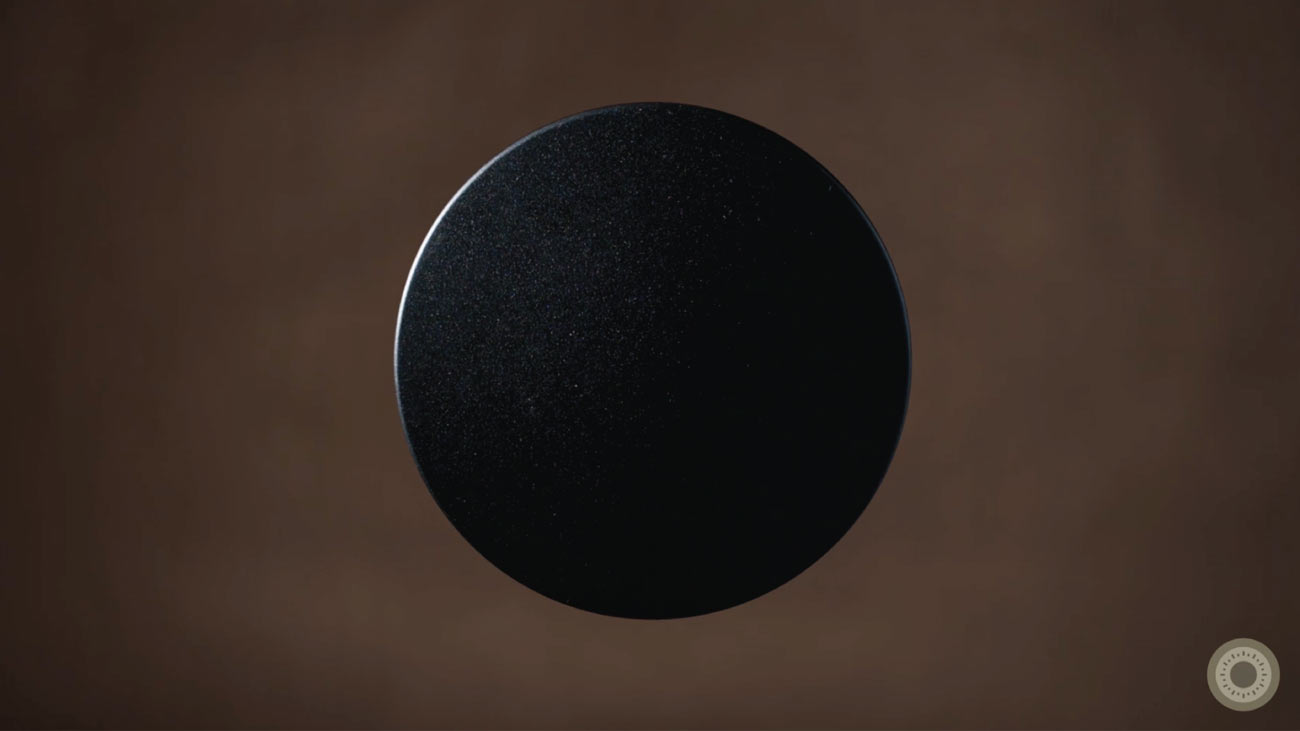

The wide beam design projects light outward across pathways, minimizing fixture count and overlap.

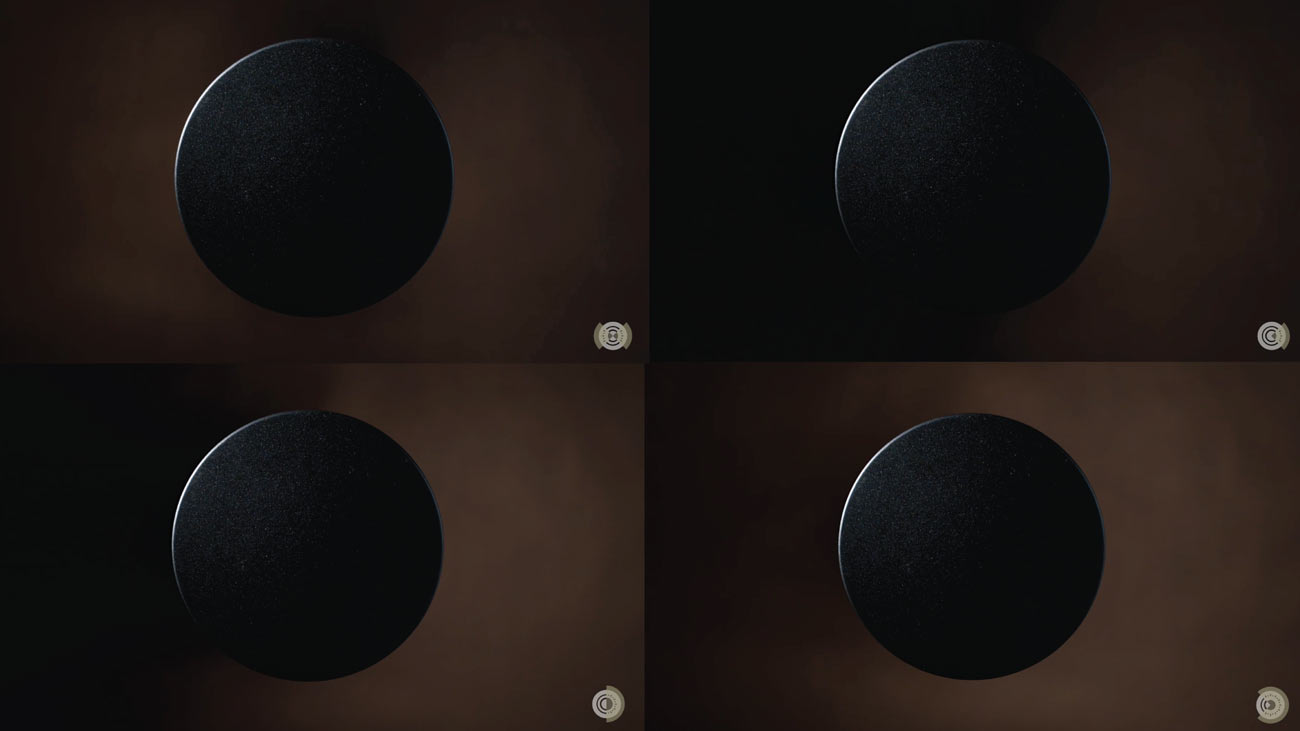

Choose from 90°, 180°, 270°, or 360° outputs — customize illumination to match site geometry and avoid wasted light.

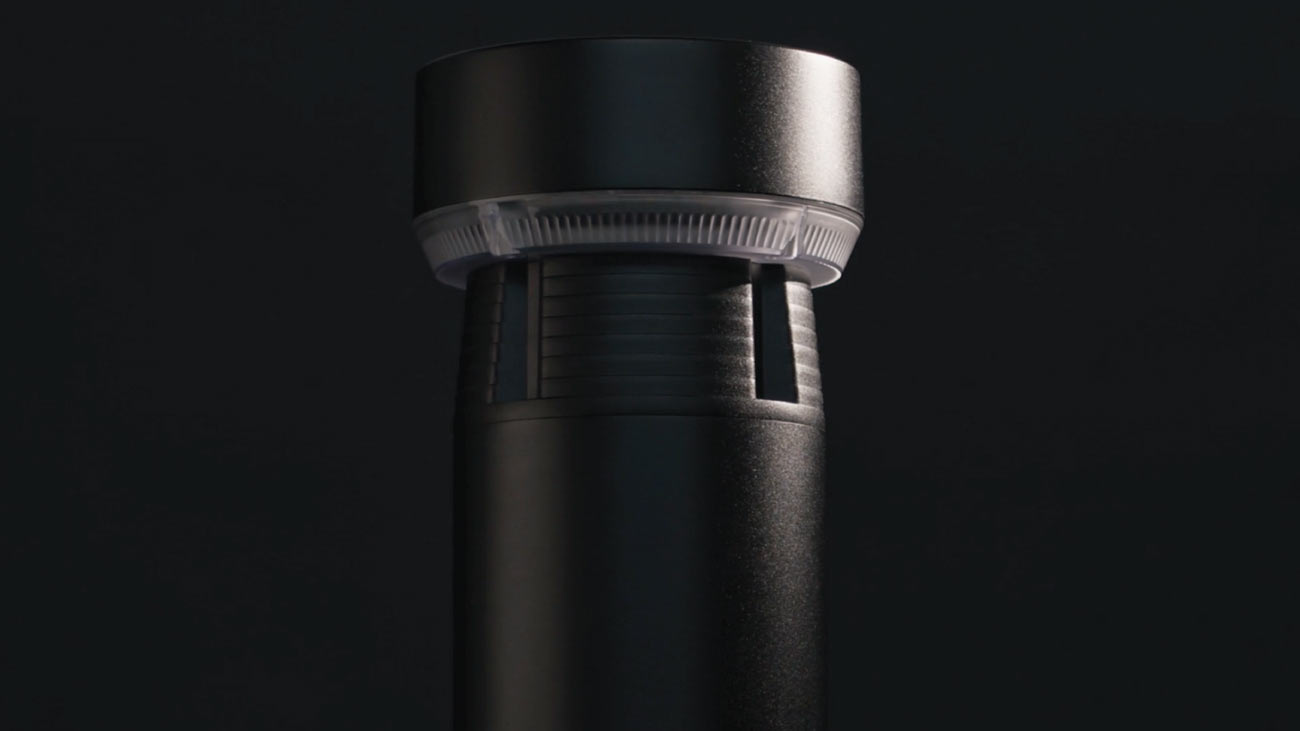

The extruded aluminum body allows for standard or custom heights, tailored to project requirements.
Advantages
Light Distribution
Continuous 360° light, no shadow bands
Beam Options
90°, 180°, 270°, or 360° configurable throws
Lateral Spacing
Wide throw allows fewer bollards – up to double traditional spacing
Construction
Extruded aluminum body; custom lengths available
Standard Height
36″– 42″
Light Source
Vertical LED PCB
Illumination Type
Uniform, shadow-free, glare-controlled
Customization
Select output quadrant and fixture height
Applications
Pathways, plazas, landscapes, architectural features
